Lubricat.syst.-oil filter, oil pipes for BMW 5 Series E39 535i (1997)

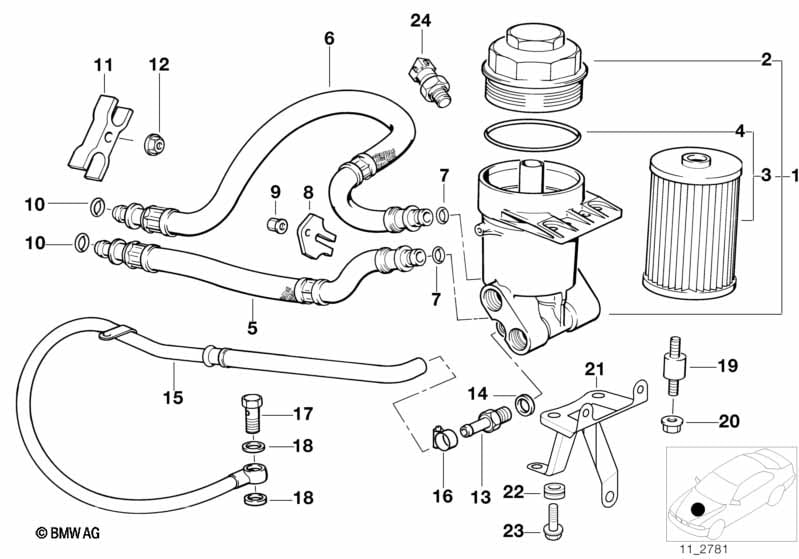

This Lubricat.syst.-oil filter, oil pipes technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter without oil cooler connection | 1 | 09/1997 | 11427511169 | $343.83 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Plate | 1 | 09/1997 | 11421437552 | $0.65 | Shop at ECS Tuning | ||||
| 02 | Oil filter cover | 1 | 11421736674 | $26.45 | Shop at ECS Tuning | |||||
| 03 | Oil filter | 1 | 11427510717 | $19.71 | Shop at ECS Tuning | |||||
| 04 | O-ring | 91X4 | 1 | 11421741000 | $5.04 | Shop at ECS Tuning | ||||
| 05 | Pressure hose assy inlet | 1 | 11421440181 | $92.10 | Shop at ECS Tuning | |||||
| 06 | Pressure hose assy outlet | 1 | 09/1998 | 11421742924 | $94.72 | Shop at ECS Tuning | ||||
| 07 | O-ring | 23,0X3,0 | 2 | 11421702916 | $2.38 | Shop at ECS Tuning | ||||
| 08 | Plate | 1 | 11421437552 | $0.65 | Shop at ECS Tuning | |||||
| 09 | Self-locking collar nut | M8-8 ZNS3 | 1 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 10 | O-ring | 14,0X2,0 | 2 | 11421702905 | $1.19 | Shop at ECS Tuning | ||||
| 11 | Holder | 1 | 11421702697 | $5.46 | Shop at ECS Tuning | |||||
| 12 | Self-locking collar nut | M8-8 ZNS3 | 1 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Connector | M14X1,5X44,5 | 1 | 13321287132 | $4.07 | ENDED | Shop at ECS Tuning | |||
| 14 | Gasket ring | A14X18-CU | 1 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 15 | Oil pipe outlet | 1 | 09/1998 | 11421745232 | $61.72 | Shop at ECS Tuning | ||||
| 16 | Hose clamp | L15-19 | 1 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 17 | Hollow bolt | M14X1,5X26 | 1 | 32416852469 | Shop at ECS Tuning | |||||
| 18 | Gasket ring | A14X20-ALMG | 2 | 32411129986 | $0.15 | Shop at ECS Tuning | ||||
| 19 | Rubber Mounting | 2 | 11421436982 | $7.63 | Shop at ECS Tuning | |||||
| 20 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 21 | Holder | 1 | 11421745152 | $9.75 | Shop at ECS Tuning | |||||
| 22 | Rubber grommet | 1 | 11421742593 | $1.05 | Shop at ECS Tuning | |||||
| 23 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 24 | Oil pressure switch | 1 | 09/1997 | 12611715504 | $25.11 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 535i Lubricat.syst.-oil filter, oil pipes?
- This technical diagram illustrates the Lubricat.syst.-oil filter, oil pipes within the Engine group for the 5 Series E39 535i produced during 1997. It provides a detailed exploded view of the components, identifying key parts such as the Oil filter without oil cooler connection (Part #11427511169).
- Which models use the hardware listed in this Lubricat.syst.-oil filter, oil pipes?
- The hardware and components featured in the Lubricat.syst.-oil filter, oil pipes are specific to the 5 Series E39 535i produced during 1997. These technical specifications ensure that parts like the Oil filter without oil cooler connection (11427511169) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubricat.syst.-oil filter, oil pipes assembly?
- Each item in the Lubricat.syst.-oil filter, oil pipes corresponds to the numbered list below the illustration. For the 5 Series E39 535i, you can identify the Oil filter without oil cooler connection by locating its position on the schematic, which then links to the official BMW part number 11427511169 for the Engine section.
