Engine acoustics for BMW 5 Series E39 535i (1997)

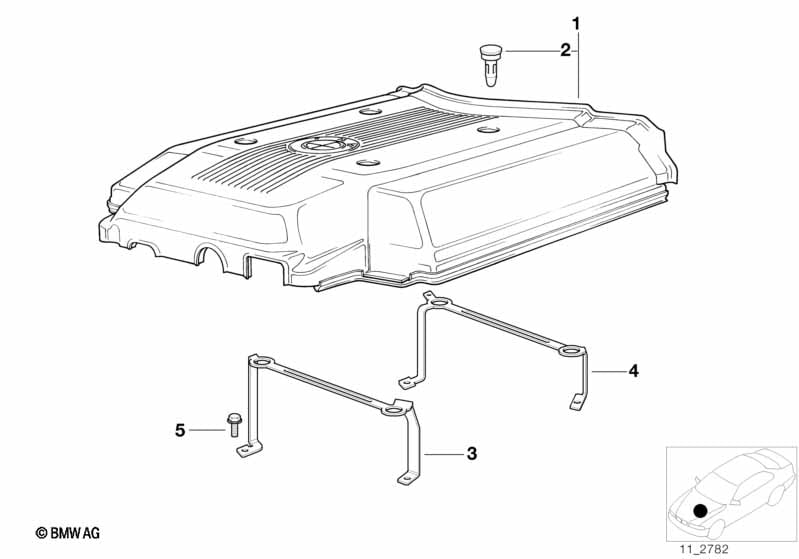

This Engine acoustics technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound protection cap | 1 | 09/1998 | 11611435012 | $351.38 | ENDED | Shop at ECS Tuning | |||
| 02 | Lock | 4 | 11611742968 | $28.09 | Shop at ECS Tuning | |||||
| 03 | Bracket front | 1 | 11611435015 | $6.63 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket rear | 1 | 11611435016 | $6.72 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M6X16-U1-8.8 | 4 | 07119904524 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
