Engine Suspension / Damper for BMW 3 Series E36 325tds (1998)

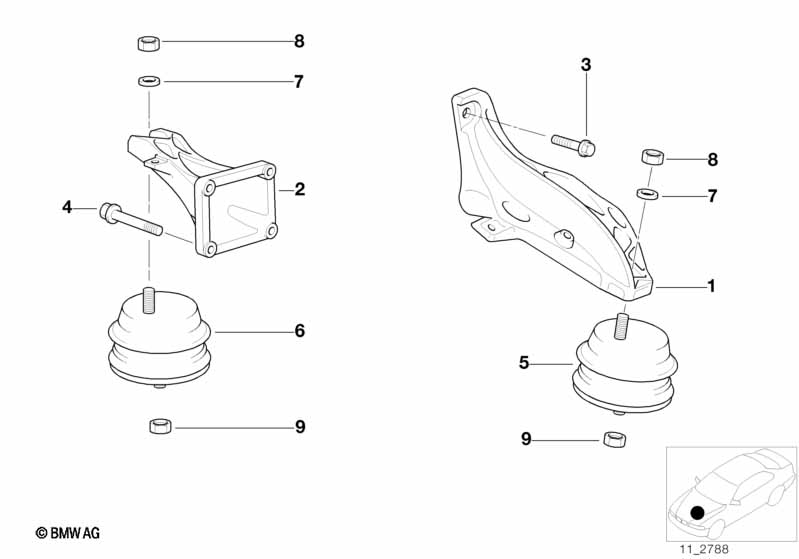

This Engine Suspension / Damper technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket left | 1 | 11811139821 | Shop at ECS Tuning | ||||||
| 02 | Supporting bracket right | 1 | 11811141974 | +core | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M8X26-10.9-ZNS3 | 3 | 07119904092 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X26-10.9-ZNS3 | 4 | 07119904092 | Shop at ECS Tuning | |||||
| 05 | Rubber Mounting | 1 | 11811139883 | $92.91 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 1 | 11811139883 | $92.91 | Shop at ECS Tuning | |||||
| 07 | Washer | 10-200 HV-ZNNIV | 2 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M10 | 2 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Hex nut | AM10-10-ZNS3 | 2 | 07129904865 | $1.00 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
