Oil pan/oil level indicator for BMW 5 Series E39 540i (2003)

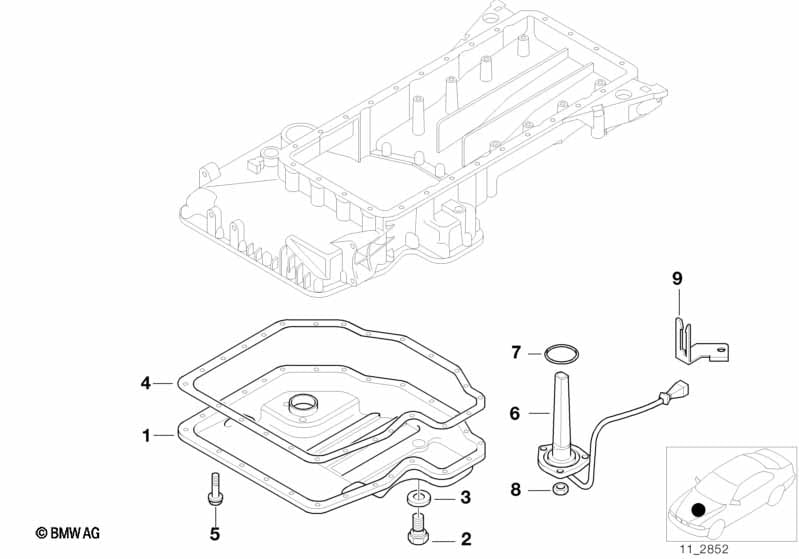

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11131702891 | $238.11 | Shop at ECS Tuning | |||||
| 02 | Screw plug | M12X1,5 | 1 | 11137568309 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 1 | 11131436324 | $35.58 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt with washer | M6X18 | 25 | 11131247069 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M6X20 | 25 | 11131439736 | $0.58 | Shop at ECS Tuning | ||||
| 06 | Oil levelling sensor | 1 | 09/1997 | 12617508003 | $163.50 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 08 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
