Crankshaft-Pistons for BMW 5 Series E12 520i (1976)

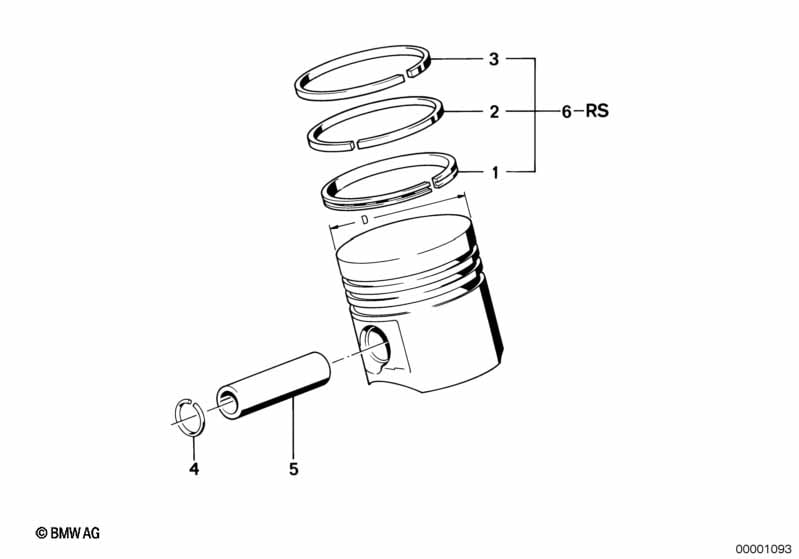

This Crankshaft-Pistons technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Snap ring | C22X1.5 | 8 | 07119934460 | $0.35 | Shop at ECS Tuning | ||||
| 05 | Gudgeon pin | 22X13X71 | 4 | 11250712199 | $29.28 | ENDED | Shop at ECS Tuning | |||
| 06 | Repair kit piston rings | 88,97MM("0") | X | 11251261130 | $73.75 | ENDED | Shop at ECS Tuning | |||
| 06 | Repair kit piston rings | 89,22MM(+0,25) | X | 11251261131 | $67.98 | Shop at ECS Tuning | ||||
| 06 | Repair kit piston rings | 89,47MM(+0,50) | X | 11251261132 | $67.98 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520i Crankshaft-Pistons?
- This technical diagram illustrates the Crankshaft-Pistons within the Engine group for the 5 Series E12 520i produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Snap ring (Part #07119934460).
- Which models use the hardware listed in this Crankshaft-Pistons?
- The hardware and components featured in the Crankshaft-Pistons are specific to the 5 Series E12 520i produced during 1976. These technical specifications ensure that parts like the Snap ring (07119934460) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankshaft-Pistons assembly?
- Each item in the Crankshaft-Pistons corresponds to the numbered list below the illustration. For the 5 Series E12 520i, you can identify the Snap ring by locating its position on the schematic, which then links to the official BMW part number 07119934460 for the Engine section.
