Engine for BMW R45-R65LS..78-85 R65LS (1985)

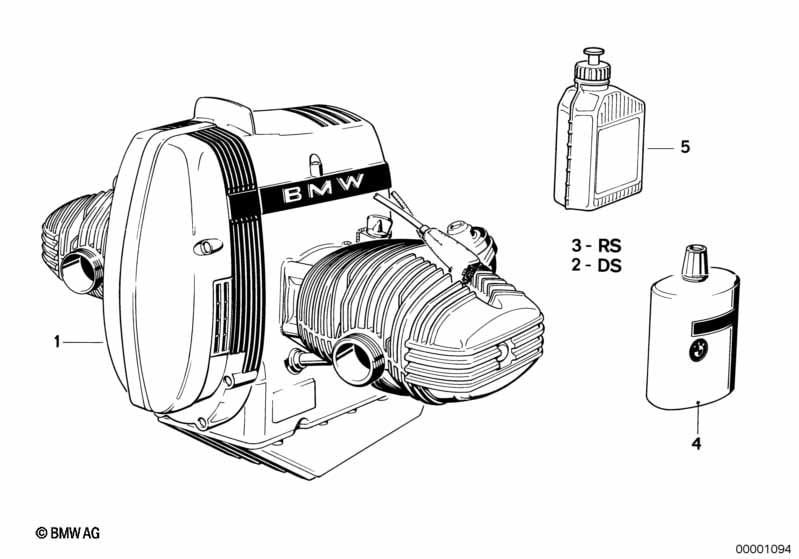

This Engine technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine | 1 | 09/1980 | 11001337378 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Seal and gasket set, engine | 1 | 11001338423 | ENDED | Shop at ECS Tuning | |||||
| 03 | Repair kit for oil change | 1 | 11009056145 | $25.02 | Shop at ECS Tuning | |||||
| 03 | Repair kit seal rings | 1 | 11009058199 | $9.96 | Shop at ECS Tuning | |||||
| *FG 11/79 R 65 USA / R 45, R 65 Model L 81 |
||||||||||
| 03 | Repair set inspection | 1 | 11/1979 | 11009056149 | ENDED | Shop at ECS Tuning | ||||
| FG* 11/79 R 65 USA / R 45, R 65 Model L 81 |
||||||||||
| 04 | Paste MP 3 | 100G | X | 07559062476 | Shop at ECS Tuning | |||||
| 04 | Kleber Loctite 638 | 50ML | X | 81229407420 | ENDED | Shop at ECS Tuning | ||||
| 04 | Loctite 5970 liquid sealant | 50ML | X | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 04 | Thread lock, medium-strength | 10ML | X | 83192210339 | Shop at ECS Tuning | |||||
| 05 | Motor oil High Performance 15W50 | 1000ML | X | 83212213684 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
