Camshaft, camshaft gear, timing chain for BMW R45-R65LS..78-85 R65 (1980)

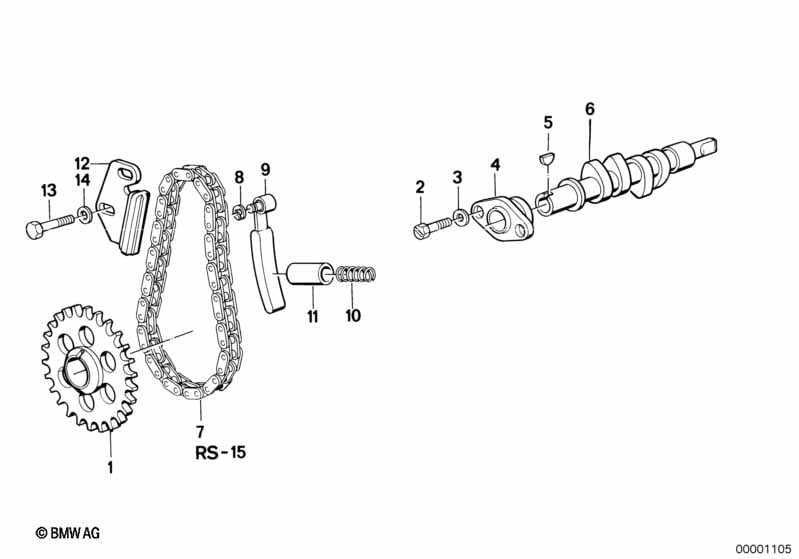

This Camshaft, camshaft gear, timing chain technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1980.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Camshaft gear | 1 | 11311335588 | $67.46 | +core | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8 | 2 | 11311263853 | $2.71 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8 | 2 | 11311337107 | $12.82 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B8 | 2 | 07119932093 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Flange | 1 | 11311250251 | $44.52 | Shop at ECS Tuning | |||||
| 05 | Woodruff key | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 06 | Camshaft Camshaft | 308DEG | 1 | 11311335181 | $188.84 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Timing chain | 1 | 11311335580 | Shop at ECS Tuning | ||||||
| 08 | Circlip | D=6MM | 1 | 07119932841 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 09 | Chain tensioner | 1 | 11311338185 | $4.41 | Shop at ECS Tuning | |||||
| 10 | Coil spring | 1 | 11311335584 | $0.91 | Shop at ECS Tuning | |||||
| 11 | Piston | 1 | 11311335579 | $7.20 | Shop at ECS Tuning | |||||
| 12 | Slide rail | 1 | 11311335576 | $25.04 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M8X22-8.8-ZNS3 | 1 | 07119904040 | Shop at ECS Tuning | |||||
| 14 | Washer | 8,4 140HV | 4 | 07119931684 | $0.40 | Shop at ECS Tuning | ||||
| 15 | Lock | X | 11311337600 | $4.61 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
