Oil Pan for BMW R50/5-R90S 69-76 R90S (1976)

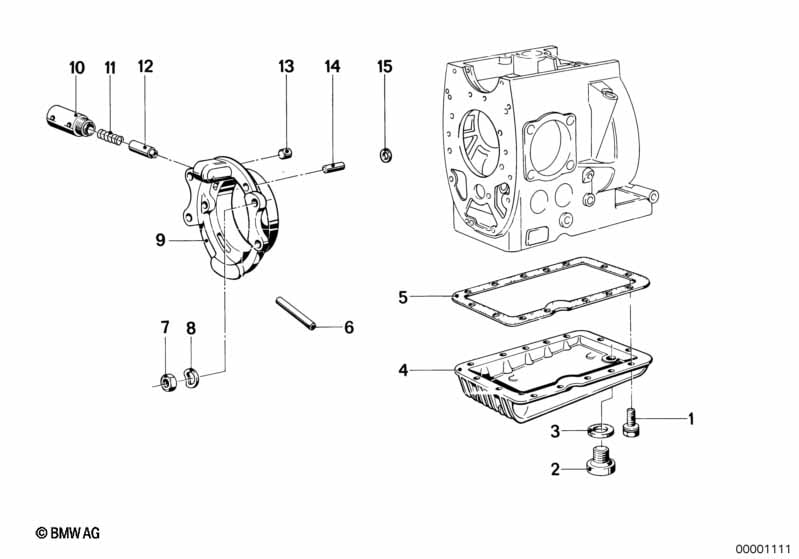

This Oil Pan technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt with washer | M6X20 | X | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 02 | Screw plug | M18X1,5-ZNNIV | 1 | 07119905428 | $11.47 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A18X22-AL | 1 | 07119963300 | $0.57 | Shop at ECS Tuning | ||||
| 04 | Oil Pan | 1 | 09/1975 | 11131262723 | $77.31 | +core | Shop at ECS Tuning | |||
| 05 | Gasket | 1 | 11131338427 | $11.97 | Shop at ECS Tuning | |||||
| 06 | Dowel pin | 4X10 | 1 | 07119942050 | $0.60 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8-8-ZNS3 | 1 | 07/1985 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 07 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Nut | 2 | 11111253243 | $9.16 | Shop at ECS Tuning | |||||
| 08 | Wave washer | B8 | 4 | 07119932093 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Bearing cover | 1 | 11111259593 | $220.31 | +core, SI 111780170 | Shop at ECS Tuning | ||||
| 10 | Hollow bolt | 1 | 11111335299 | $29.81 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Piston | 1 | 11421271320 | $3.21 | Shop at ECS Tuning | |||||
| 11 | Compression spring | 1 | 11411744324 | $1.27 | Shop at ECS Tuning | |||||
| 12 | Piston | 1 | 11421271320 | $3.21 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hollow bolt | 1 | 11111335299 | $29.81 | ENDED | Shop at ECS Tuning | ||||
| 13 | Plug | 1 | 11111744326 | $2.80 | Shop at ECS Tuning | |||||
| 14 | Pin | 1 | 11111253184 | $1.71 | Shop at ECS Tuning | |||||
| 15 | Cover lid | D=16MM | 1 | 07119932412 | $0.37 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
