Cylinder for BMW R45-R65LS..78-85 R65LS (1985)

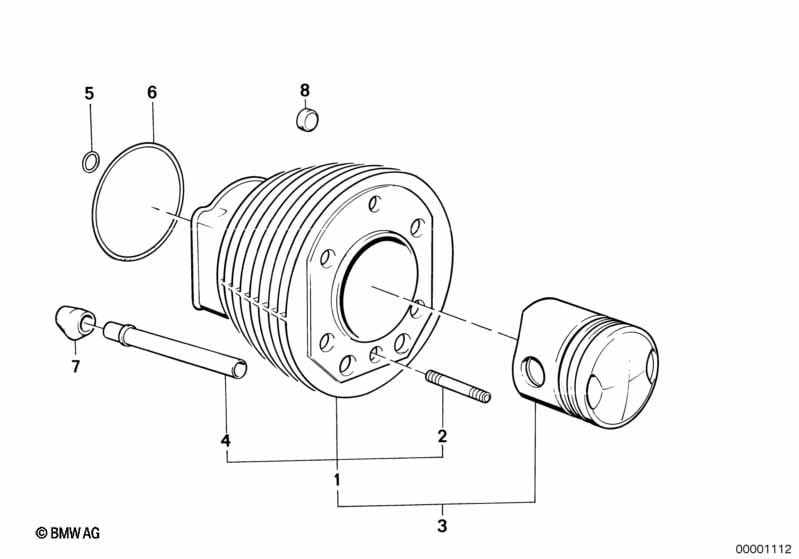

This Cylinder technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | "Nikasil"-cylinder | 82.00 | 2 | 11/1979 | 11111337275 | $717.56 | +core | Shop at ECS Tuning | ||
| 02 | Stud bolt | M10X50-8.8-PHR | 4 | 07129908174 | $1.30 | Shop at ECS Tuning | ||||
| 03 | Cylinder with piston | 2 | 11/1979 | 11001338031 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cylinder with piston | 2 | 09/1980 | 11001337394 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Protection tube | 4 | 11111335277 | $25.85 | ENDED | Shop at ECS Tuning | ||||
| 05 | O-ring | 11X2 | 4 | 11111262141 | $1.94 | Shop at ECS Tuning | ||||
| 06 | O-ring | 93X2.2 | 2 | 11111337567 | $6.74 | Shop at ECS Tuning | ||||
| 07 | Rubber grommet | 4 | 11111335090 | $3.84 | Shop at ECS Tuning | |||||
| 08 | Pushrod seal | X | 11121337818 | $2.03 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
