Cylinder Head Attached Parts for BMW R45-R65LS..78-85 R65 (1980)

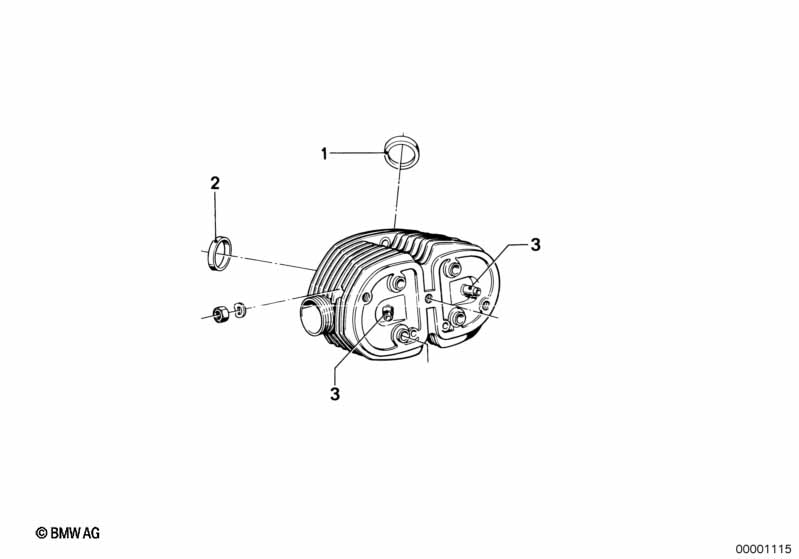

This Cylinder Head Attached Parts technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1980.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Valve Seat Ring Intake | +0.2 | 2 | 09/1980 | 11121337525 | $15.14 | Shop at ECS Tuning | |||
| 01 | Valve Seat Ring Intake | +0,4 | 2 | 09/1980 | 11121337526 | $15.14 | ENDED | Shop at ECS Tuning | ||
| 02 | Valve Seat Ring Exhaust | +0,2 | 2 | 09/1980 | 11121337523 | $34.20 | ENDED | Shop at ECS Tuning | ||
| 02 | Valve Seat Ring Exhaust | +0,4 | 2 | 09/1980 | 11121337524 | ENDED | Shop at ECS Tuning | |||
| 03 | Valve Guide | 14.06 | 4 | 11121338709 | $27.16 | Shop at ECS Tuning | ||||
| 03 | Valve Guide | 14.25 | 4 | 11121338710 | $27.16 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65 Cylinder Head Attached Parts?
- This technical diagram illustrates the Cylinder Head Attached Parts within the Engine group for the R45-R65LS..78-85 R65 produced during 1980. It provides a detailed exploded view of the components, identifying key parts such as the Valve Seat Ring Intake (Part #11121337525).
- Which models use the hardware listed in this Cylinder Head Attached Parts?
- The hardware and components featured in the Cylinder Head Attached Parts are specific to the R45-R65LS..78-85 R65 produced during 1980. These technical specifications ensure that parts like the Valve Seat Ring Intake (11121337525) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head Attached Parts assembly?
- Each item in the Cylinder Head Attached Parts corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65, you can identify the Valve Seat Ring Intake by locating its position on the schematic, which then links to the official BMW part number 11121337525 for the Engine section.
