Cylinder Head for BMW R50/5-R90S 69-76 R90S (1976)

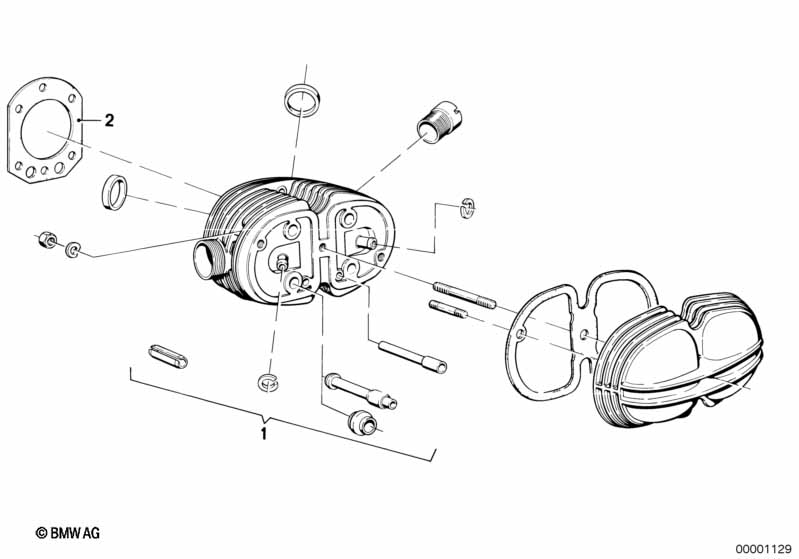

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head right | 1 | 11121262852 | $509.27 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Cylinder head left | 1 | 11121262854 | $509.27 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Cylinder Head Gasket Asbestos-Free | 2 | 11121338716 | $21.48 | +core, SI 110978059 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- SI = Service Information
