Oil pan/oil level indicator for BMW 7 Series E32 735iL (1992)

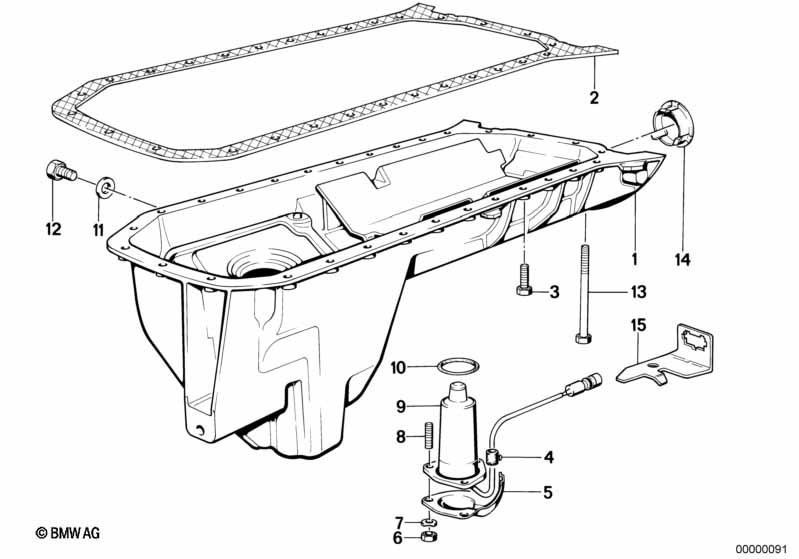

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11131708345 | $660.15 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 1 | 11131315154 | $31.83 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X20-Z3 | X | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 04 | Rubber grommet | 1 | 12611276240 | $0.63 | Shop at ECS Tuning | |||||
| 05 | Covering plate | 1 | 12521276200 | $6.53 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M6-8-ZNNIV SI | 3 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Spring washer Black | B6-ZN | 3 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Stud bolt | M6X25-ZN | 3 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Levelling switch | 1 | 03/1987 | 12611717394 | $181.52 | Shop at ECS Tuning | ||||
| 10 | Gasket ring | 40X4 | 1 | 12611277129 | $2.09 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 12 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M6X110 | 2 | 11131706782 | $1.23 | ENDED | Shop at ECS Tuning | |||
| 14 | Covering cap | 1 | 11131713202 | $1.08 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bracket | 1 | 03/1987 | 12521719750 | $3.57 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 735iL Oil pan/oil level indicator?
- This technical diagram illustrates the Oil pan/oil level indicator within the Engine group for the 7 Series E32 735iL produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Oil Pan (Part #11131708345).
- Which models use the hardware listed in this Oil pan/oil level indicator?
- The hardware and components featured in the Oil pan/oil level indicator are specific to the 7 Series E32 735iL produced during 1992. These technical specifications ensure that parts like the Oil Pan (11131708345) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pan/oil level indicator assembly?
- Each item in the Oil pan/oil level indicator corresponds to the numbered list below the illustration. For the 7 Series E32 735iL, you can identify the Oil Pan by locating its position on the schematic, which then links to the official BMW part number 11131708345 for the Engine section.
