Oil pan/oil level indicator for BMW 5 Series E34 520i (1990)

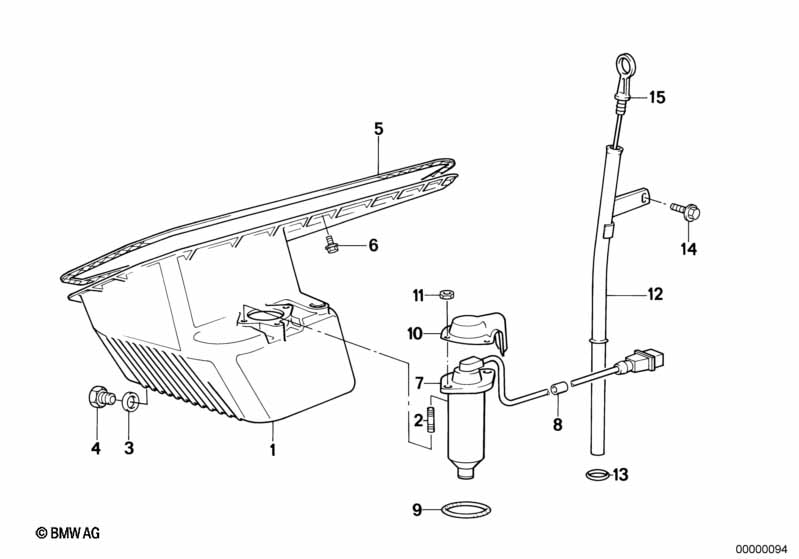

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11131288305 | $402.64 | ENDED | Shop at ECS Tuning | ||||
| 02 | Stud bolt | M6X25-ZN | 3 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 04 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 05 | Gasket Asbestos Free | 1 | 11131730234 | $18.37 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X20-Z3 | X | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 07 | Cover lid | 1 | 11132240942 | $7.64 | ENDED | Shop at ECS Tuning | ||||
| 09 | O-ring | 3X42,3 | 1 | 12611277602 | $2.02 | Shop at ECS Tuning | ||||
| 11 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 12 | Guide tube | L=565,8MM | 1 | 11431718843 | $30.60 | Shop at ECS Tuning | ||||
| 13 | O-ring | 14,5X3 | 1 | 11431287541 | $1.19 | Shop at ECS Tuning | ||||
| 14 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 15 | Dipstick | L=533,5MM | 1 | 11431718863 | $15.30 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 520i Oil pan/oil level indicator?
- This technical diagram illustrates the Oil pan/oil level indicator within the Engine group for the 5 Series E34 520i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Oil Pan (Part #11131288305).
- Which models use the hardware listed in this Oil pan/oil level indicator?
- The hardware and components featured in the Oil pan/oil level indicator are specific to the 5 Series E34 520i produced during 1990. These technical specifications ensure that parts like the Oil Pan (11131288305) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pan/oil level indicator assembly?
- Each item in the Oil pan/oil level indicator corresponds to the numbered list below the illustration. For the 5 Series E34 520i, you can identify the Oil Pan by locating its position on the schematic, which then links to the official BMW part number 11131288305 for the Engine section.
