Oil pan/oil level indicator for BMW 5 Series E34 525i (1996)

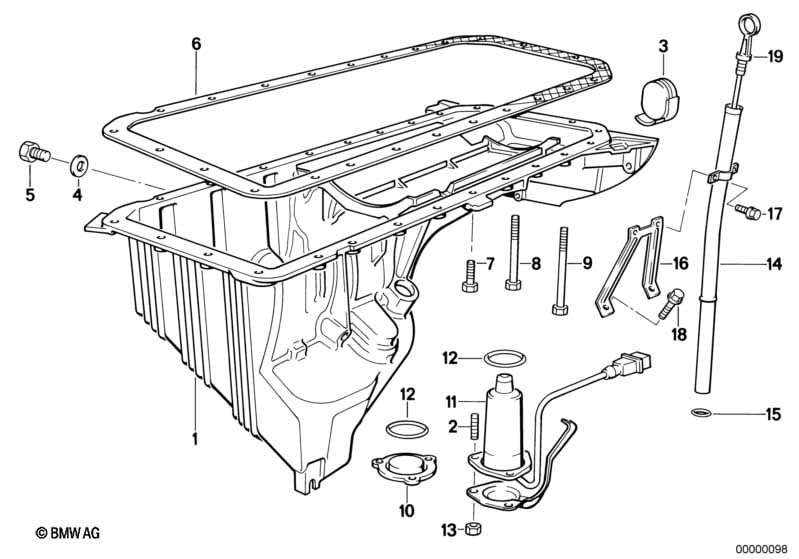

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 02/1994 | 11131740340 | $462.93 | Shop at ECS Tuning | ||||
| 02 | Stud bolt | M6X28-ZN | 3 | 07129908111 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Covering cap | 1 | 11131726297 | $1.50 | Shop at ECS Tuning | |||||
| 04 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 06 | Gasket Steel | 1 | 11131437237 | $48.50 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X20-Z3 | X | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X60-Z3 | 2 | 07119913001 | $0.63 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex bolt | M6X60 | 2 | 07119902994 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex bolt with washer | M6X95-U1 | 2 | 07119905433 | $3.35 | Shop at ECS Tuning | ||||
| 11 | Levelling switch | 1 | 12611748193 | $181.52 | Shop at ECS Tuning | |||||
| 12 | Gasket ring | 40X4 | 1 | 12611277129 | $2.09 | Shop at ECS Tuning | ||||
| 13 | Hex nut with plate | AM6-8-ZNNIV SI | 3 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 14 | Guide tube | 1 | 07/1991 | 11431738169 | $40.73 | Shop at ECS Tuning | ||||
| 15 | O-ring | 14,5X3 | 1 | 11431287541 | $1.19 | Shop at ECS Tuning | ||||
| 17 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07/1991 | 07129904553 | $0.64 | Shop at ECS Tuning | |||
| 18 | Hex bolt with washer | M8X45-Z3 | 2 | 07119912970 | $0.41 | Shop at ECS Tuning | ||||
| 19 | Dipstick | 1 | 11431720875 | $15.30 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
