Cylinder Head for BMW 5 Series E28 518 (1984)

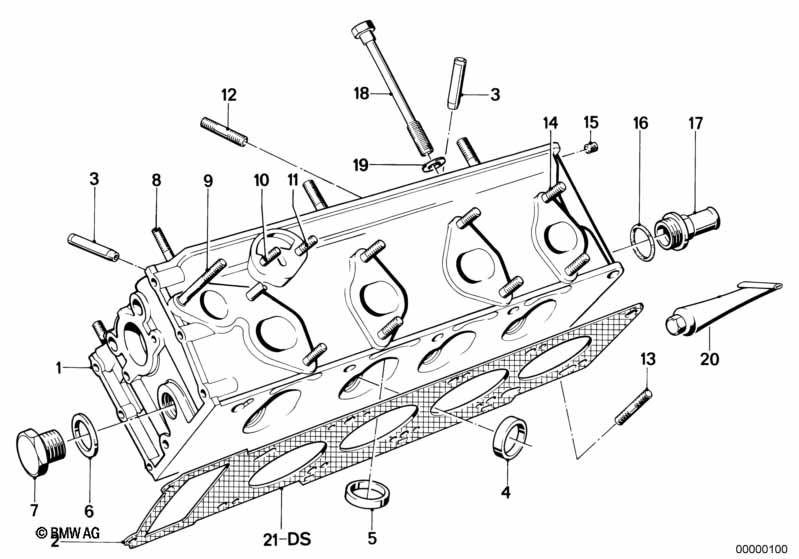

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | 1 | 11121269600 | $1891.62 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cylinder Head Gasket Asbestos-Free | 1,50MM | 1 | 11121734279 | $109.50 | ENDED | Shop at ECS Tuning | |||
| 02 | Cylinder Head Gasket Asbestos-Free | 1,50MM | 1 | 11121734213 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cylinder Head Gasket Asbestos-Free | 1,50MM | 1 | 11121734213 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cylinder Head Gasket Asbestos-Free | 1,80MM(+0,3) | 1 | 11121734280 | $108.76 | ENDED | Shop at ECS Tuning | |||
| 02 | Cylinder Head Gasket Asbestos-Free | 1,80MM(+0,3) | 1 | 11121734214 | ENDED | Shop at ECS Tuning | ||||
| 03 | Valve Guide | +0,10MM | 8 | 11121266760 | $11.54 | ENDED, SI 110288843 | Shop at ECS Tuning | |||
| see service information SIT 843 11 02 88 (valve stem oversize) |
||||||||||
| 04 | Valve Seat Ring Exhaust | +0,40MM | 4 | 11121706519 | $7.48 | ENDED | Shop at ECS Tuning | |||
| 04 | Valve seat insert exhaust lead-free | 4 | 11121706527 | ENDED | Shop at ECS Tuning | |||||
| 05 | Valve Seat Ring Intake | +0,20MM | 4 | 11120621112 | $7.48 | ENDED | Shop at ECS Tuning | |||
| 05 | Valve Seat Ring Intake | +0,40MM | 4 | 11120621162 | $7.48 | ENDED | Shop at ECS Tuning | |||
| 06 | Gasket ring | A30X36-AL | 1 | 24111219126 | $0.71 | Shop at ECS Tuning | ||||
| 07 | Screw plug | M30X1,5 | 1 | 07119919039 | $3.11 | Shop at ECS Tuning | ||||
| 08 | Stud bolt | M6X50 | 6 | 07129902312 | Shop at ECS Tuning | |||||
| 09 | Stud bolt | M8X90 | 1 | 07129908160 | $0.76 | Shop at ECS Tuning | ||||
| 10 | Stud bolt | M8X50-ZNS | 1 | 07129901917 | $0.61 | Shop at ECS Tuning | ||||
| 11 | Stud bolt | M8X55 | 1 | 07129908137 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Stud bolt | M8X40 | 8 | 07129908134 | $0.33 | Shop at ECS Tuning | ||||
| 14 | Stud bolt | M8X28-ZN | 7 | 07119908368 | $0.54 | Shop at ECS Tuning | ||||
| 15 | Threaded plug | M6 | 1 | 11121744337 | $1.68 | ENDED | Shop at ECS Tuning | |||
| 16 | O-ring | 34X2 | 1 | 11121277350 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 17 | Connector | M36 | 1 | 11121257516 | $7.12 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M12X156 | X | 11120621144 | $4.57 | Shop at ECS Tuning | ||||
| 19 | Washer | X | 11120621145 | $0.65 | Shop at ECS Tuning | |||||
| 20 | Sealing compound | 1 | 11121262571 | ENDED | Shop at ECS Tuning | |||||
| 21 | Gasket Set Cylinder Head Asbestos Free | 1 | 11121734115 | $231.88 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
