Flywheel / Twin Mass Flywheel for BMW 3 Series E30 320is (1990)

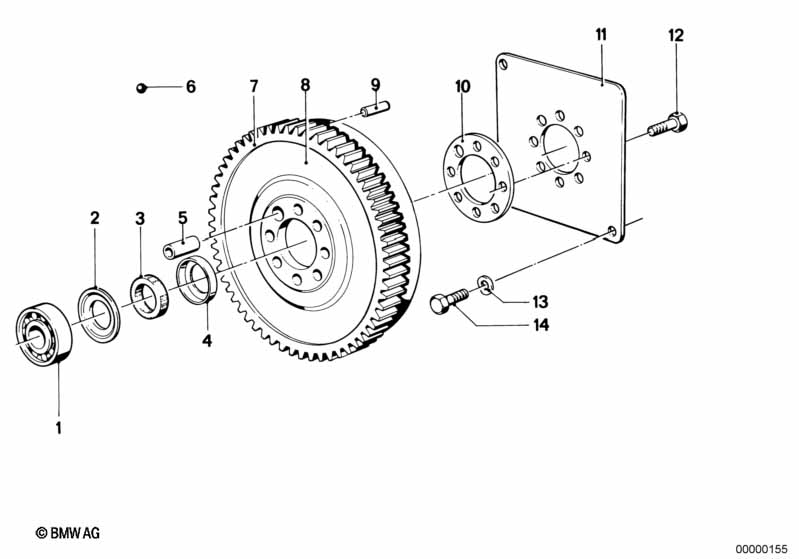

This Flywheel / Twin Mass Flywheel technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grooved ball bearing | 12X32X10 | 1 | 11211709681 | $17.67 | Shop at ECS Tuning | ||||
| 01 | Grooved ball bearing | 1 | 11211709934 | Shop at ECS Tuning | ||||||
| 02 | Covering plate | 1 | 11211744345 | $3.92 | Shop at ECS Tuning | |||||
| 03 | Feltring | 1 | 11211744601 | $0.87 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering cap | 1 | 11211744342 | $1.18 | Shop at ECS Tuning | |||||
| 05 | Dowel | D=14,5MM | 1 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 07 | Gear rim | Z=116 | 1 | 11221270080 | ENDED | Shop at ECS Tuning | ||||
| 08 | Flywheel | 1 | 09/1989 | 11221311862 | $440.70 | ENDED | Shop at ECS Tuning | |||
| 09 | Dowel pin | 3 | 11221744338 | $7.48 | Shop at ECS Tuning | |||||
| 10 | Shim | 1 | 11221262827 | $32.37 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M12X1,5X22 | 8 | 06/1988 | 11220616143 | $3.77 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320is Flywheel / Twin Mass Flywheel?
- This technical diagram illustrates the Flywheel / Twin Mass Flywheel within the Engine group for the 3 Series E30 320is produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Grooved ball bearing (Part #11211709681).
- Which models use the hardware listed in this Flywheel / Twin Mass Flywheel?
- The hardware and components featured in the Flywheel / Twin Mass Flywheel are specific to the 3 Series E30 320is produced during 1990. These technical specifications ensure that parts like the Grooved ball bearing (11211709681) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flywheel / Twin Mass Flywheel assembly?
- Each item in the Flywheel / Twin Mass Flywheel corresponds to the numbered list below the illustration. For the 3 Series E30 320is, you can identify the Grooved ball bearing by locating its position on the schematic, which then links to the official BMW part number 11211709681 for the Engine section.
