Lubrication system-Oil filter for BMW 7 Series E23 735i (1985)

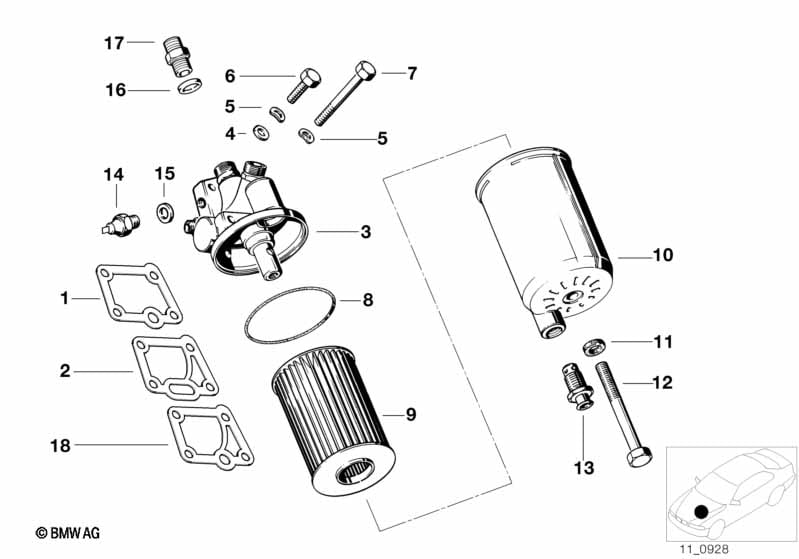

This Lubrication system-Oil filter technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket Asbestos Free | 1 | 11421730264 | $2.47 | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 1 | 11421722688 | $2.42 | Shop at ECS Tuning | |||||
| 03 | Oil filter head | 1 | 11421284764 | ENDED | Shop at ECS Tuning | |||||
| 03 | Oil filter head | 1 | 11421716587 | $474.07 | Shop at ECS Tuning | |||||
| 03 | Oil filter head | 1 | 11421716587 | $474.07 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 03 | Oil filter head | 1 | 11421716592 | $456.40 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Gasket Asbestos Free | 1 | 11421722688 | $2.42 | Shop at ECS Tuning | |||||
| 04 | Washer | 8,4 140HV | 2 | 07119931684 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X60-ZNNIV SI | 1 | 07119905974 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X30 | 1 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X35 | 1 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X85-8.8 | 1 | 07119908003 | Shop at ECS Tuning | |||||
| 08 | O-ring | 91X4 | 1 | 11421741000 | $5.04 | Shop at ECS Tuning | ||||
| 09 | Set oil-filter element | 1 | 11429063138 | $12.25 | Shop at ECS Tuning | |||||
| 10 | Oil filter housing | 1 | 11421274544 | $160.27 | Shop at ECS Tuning | |||||
| 11 | Gasket ring | A10X14-AL | 1 | 07119963075 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M10X110 | 1 | 07119912712 | $1.83 | ENDED | Shop at ECS Tuning | |||
| 13 | Hollow bolt | M12X1,5 | 1 | 11421273901 | $15.89 | ENDED | Shop at ECS Tuning | |||
