Oil pan/oil level indicator for BMW 3 Series E36 318i (1996)

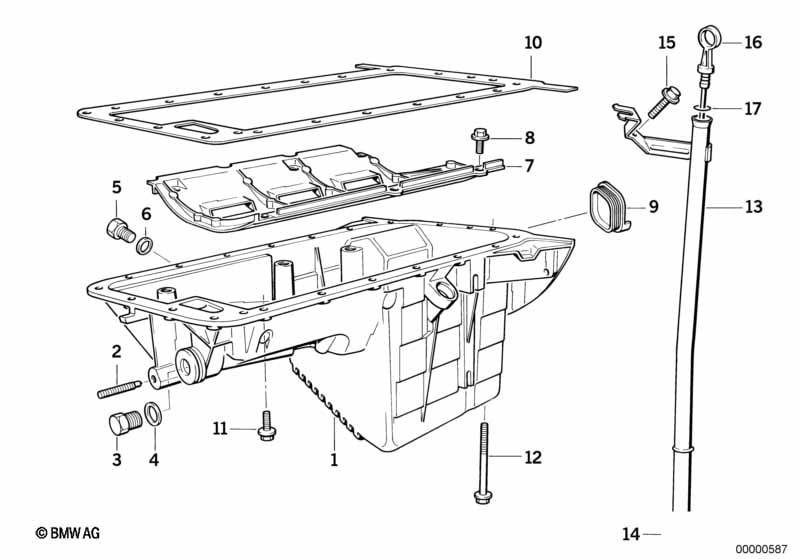

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 09/1995 | 11131247995 | $346.42 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cover | 1 | 09/1995 | 11131717720 | $5.36 | Shop at ECS Tuning | ||||
| 02 | Stud bolt | M8X40 | 1 | 07129903964 | Shop at ECS Tuning | |||||
| 03 | Screw plug | M26X1,5-AL4 | 1 | 07119900198 | $10.47 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A26X31-AL | 1 | 07119963418 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 07 | Oil deflector | 1 | 11131727890 | $32.22 | Shop at ECS Tuning | |||||
| 08 | Collar screw | M6X20 | 6 | 11131247056 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Cover | 1 | 11131717720 | $5.36 | Shop at ECS Tuning | |||||
| 10 | Profile-gasket | 1 | 09/1995 | 11131739813 | $23.58 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X30-ZNNIV SI | X | 09/1995 | 07119906123 | $0.81 | Shop at ECS Tuning | |||
| 12 | Hex bolt with washer | M6X60 | 2 | 11131247070 | $0.58 | Shop at ECS Tuning | ||||
| 13 | Guide tube | 1 | 01/1994 | 11431247423 | $40.73 | ENDED | Shop at ECS Tuning | |||
| 14 | O-ring | 14,5X3 | 1 | 11431287541 | $1.19 | Shop at ECS Tuning | ||||
| 15 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 16 | Dipstick | 1 | 01/1994 | 11431247531 | $15.30 | Shop at ECS Tuning | ||||
| 17 | O-ring | 14,5X3 | 2 | 11431287541 | $1.19 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Oil pan/oil level indicator?
- This technical diagram illustrates the Oil pan/oil level indicator within the Engine group for the 3 Series E36 318i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Oil Pan (Part #11131247995).
- Which models use the hardware listed in this Oil pan/oil level indicator?
- The hardware and components featured in the Oil pan/oil level indicator are specific to the 3 Series E36 318i produced during 1996. These technical specifications ensure that parts like the Oil Pan (11131247995) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pan/oil level indicator assembly?
- Each item in the Oil pan/oil level indicator corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Oil Pan by locating its position on the schematic, which then links to the official BMW part number 11131247995 for the Engine section.
