Short engine for BMW 3 Series E36 325td (1992)

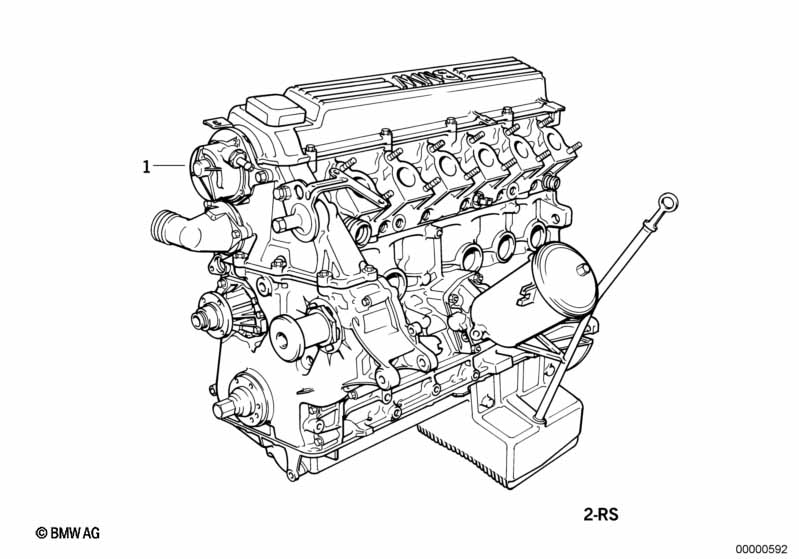

This Short engine technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Intake manifold alu |
=Yes |
|||||||||
| 01 | Exch. short engine (sales campaign) | 256T1 | 1 | 09/1993 | 11000030383 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Exch. short engine | 256T1 | 1 | 09/1993 | 11009068613 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Clamp p heater return pipe | 1 | 09/1993 | 11712244907 | ENDED | Shop at ECS Tuning | ||||
| -- | Holder | 1 | 09/1993 | 11282245419 | +core | Shop at ECS Tuning | ||||
| -- | Hex bolt with washer | M6X18-U1 | 1 | 09/1993 | 07119905399 | $0.36 | Shop at ECS Tuning | |||
| 02 | Set Mounting Parts Short Engine | 1 | 01/1996 | 11009070054 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Gasket w/heat prot.shield asbestosfree | 1 | 01/1996 | 11622247024 | $27.16 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
