Engine Block Mounting Parts for BMW 3 Series E46 318i (1998)
This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connector | 1 | 11531709232 | $17.70 | Shop at ECS Tuning | |||||
| 02 | O-ring | 32X5 | 1 | 11531709157 | $2.04 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Screw plug | M14X1,5-ZNNIV | 1 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 06 | Covering plate | 1 | 11142243305 | $11.15 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 06 | Covering plate | 1 | 11141734019 | $11.15 | ENDED | Shop at ECS Tuning | ||||
| 07 | Gasket Steel | 1 | 11141432240 | $3.10 | Shop at ECS Tuning | |||||
| 08 | Set of covers | 1 | 11141437774 | $94.60 | Shop at ECS Tuning | |||||

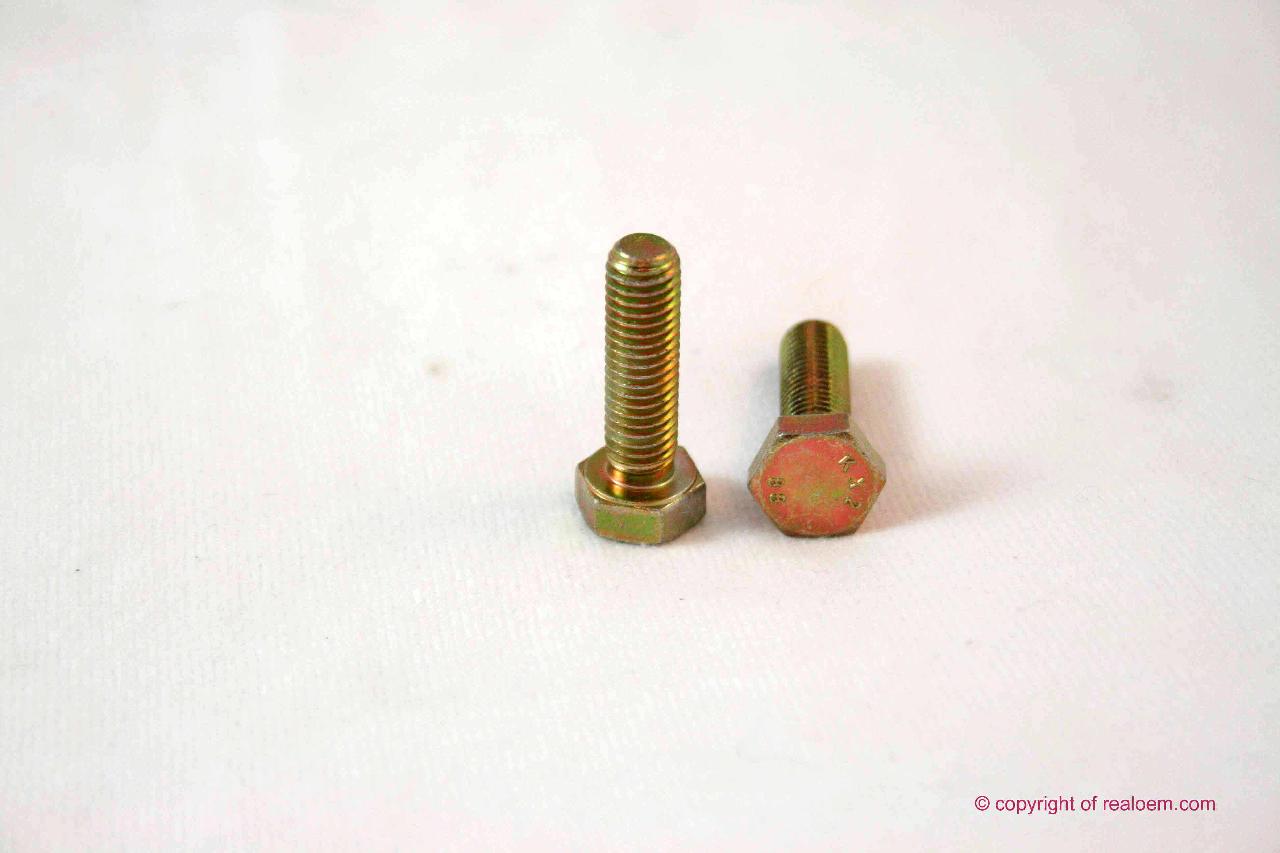

| 09 | Hex bolt with washer | M6X25-ZNNIV SI | 4 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||

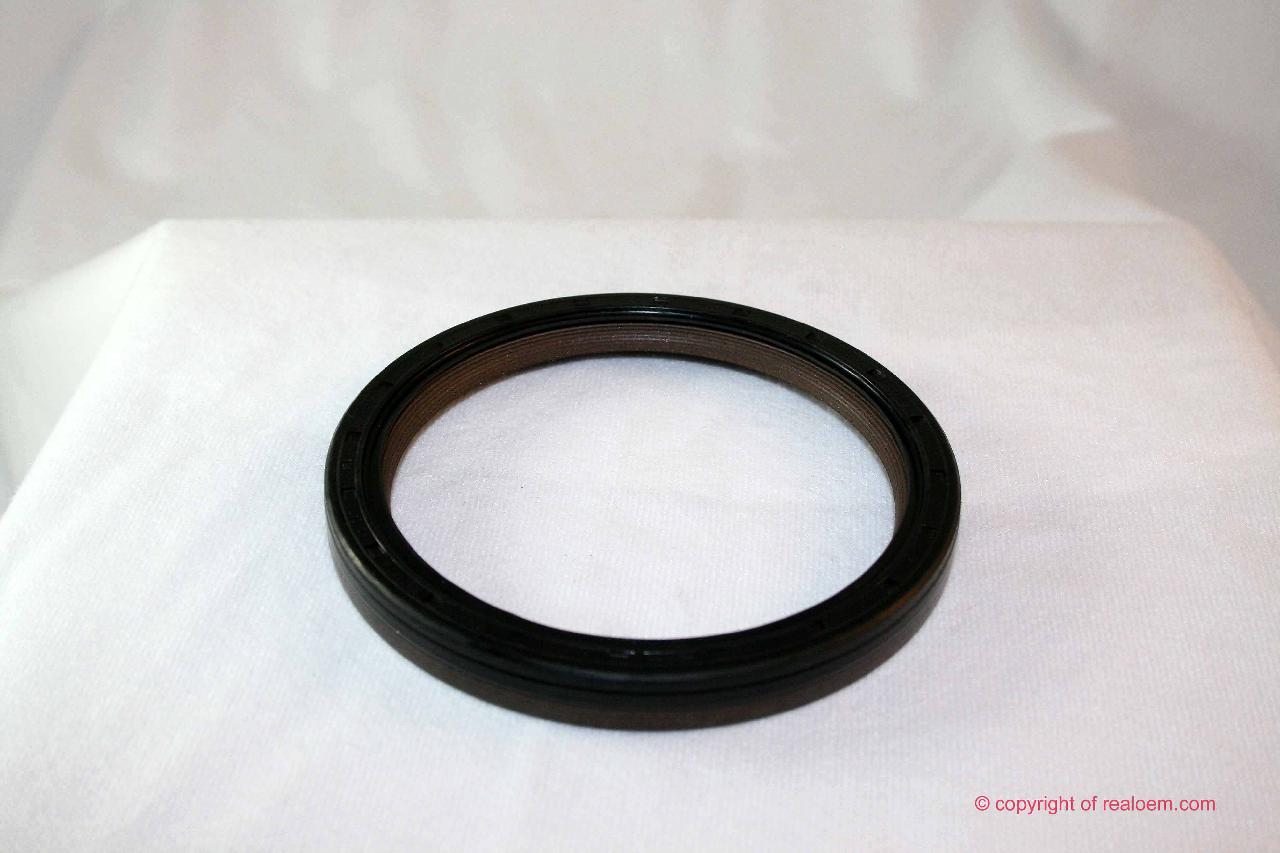

| 10 | Shaft seal | 90X110X12 | 1 | 11142249533 | $58.96 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M8X32-Z1 | 2 | 11141744147 | $0.85 | Shop at ECS Tuning | ||||
| 12 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 13 | Blind plug | 11,50MM | 1 | 11111714541 | $1.60 | Shop at ECS Tuning | ||||

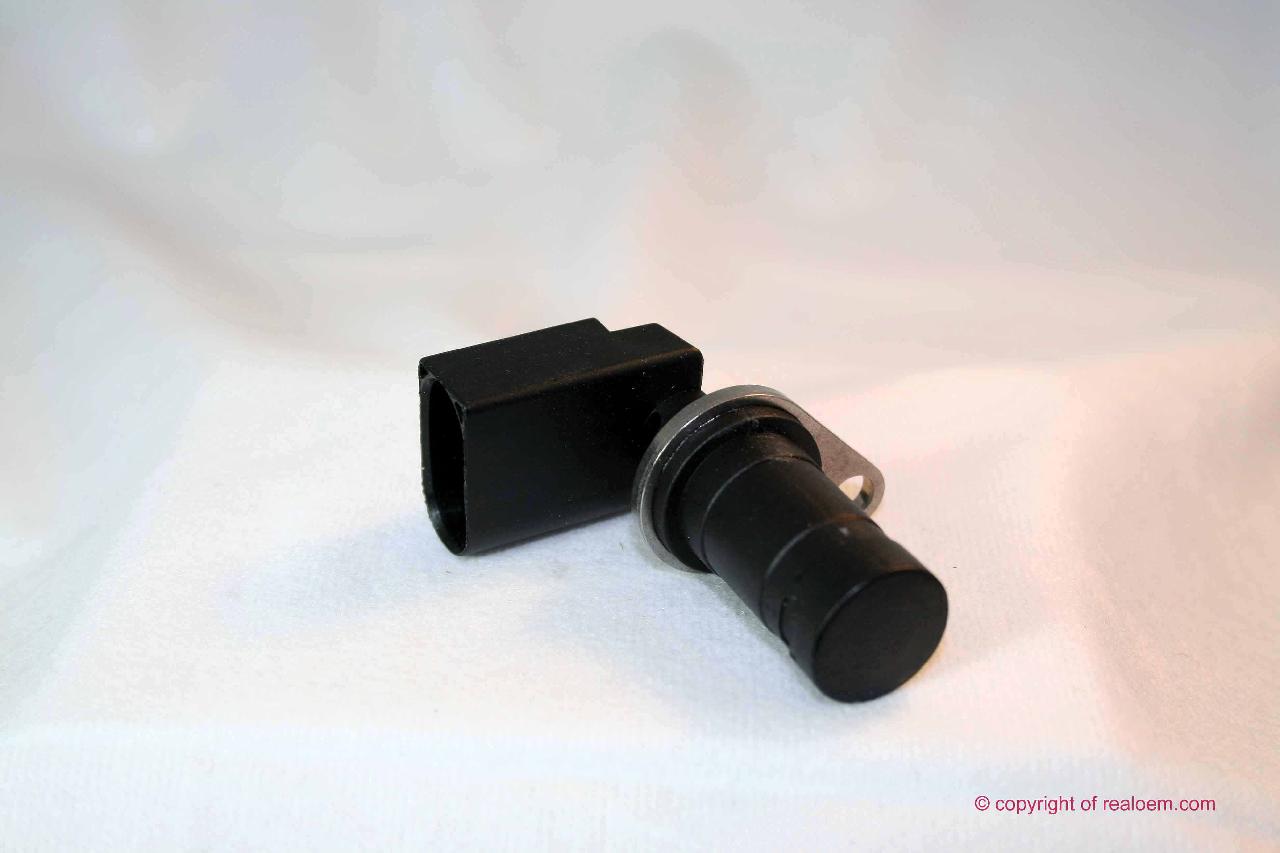

| 14 | Pulse generator, crankshaft | 1 | 12141709616 | $116.05 | Shop at ECS Tuning | |||||
| 15 | O-ring | 17X3 | 1 | 12141748398 | $1.20 | Shop at ECS Tuning | ||||
| 16 | Fillister-head screw | M6X16 | 1 | 11421740488 | $0.98 | Shop at ECS Tuning | ||||
| 17 | Ping Sensor | 1 | 13627568422 | $90.58 | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M8X28-ZN | 2 | 07119913659 | $0.47 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 19 | Cover lid | 1 | 11141730453 | $3.22 | Shop at ECS Tuning | |||||
| 20 | Gasket Set Engine Block Asbesto Free | 1 | 11111712981 | $134.07 | Shop at ECS Tuning | |||||
