Engine block for BMW 3 Series E46 318i (1998)

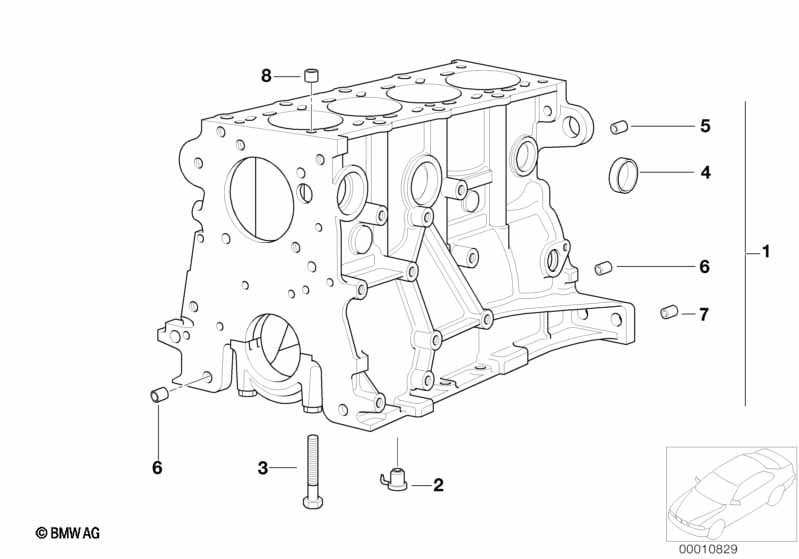

This Engine block technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crankcase | 1 | 11111712975 | $2047.86 | +core | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Primer Loctite 171000 | 4ML | 1 | 83197515683 | $11.90 | Shop at ECS Tuning | ||||
| 02 | Oil Spraying Nozzle | 4 | 11111739907 | $15.22 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M10X75 | 10 | 11111735525 | $0.93 | Shop at ECS Tuning | ||||
| 04 | Cover lid | D=36MM | 4 | 11111717939 | $2.20 | Shop at ECS Tuning | ||||
| 05 | Plug | D=12,0MM | 1 | 11111268539 | $0.58 | Shop at ECS Tuning | ||||
| 06 | Dowel | D=10,5MM | 4 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 07 | Dowel | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 08 | Dowel | D=12,5MM | 2 | 11121726241 | $1.62 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
