Cylinder Head Attached Parts for BMW 3 Series E46 318i (1998)

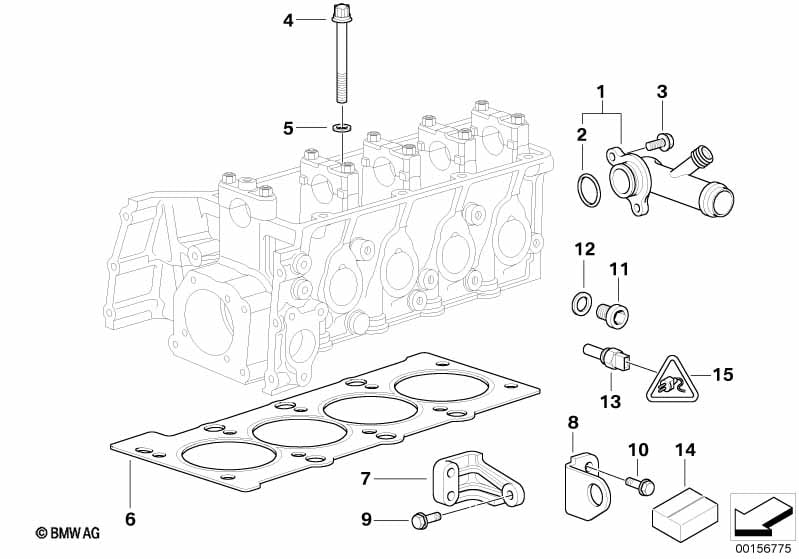

This Cylinder Head Attached Parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connector | 1 | 11531708808 | $11.83 | Shop at ECS Tuning | |||||
| 02 | O-ring | 26,5X2,5 | 1 | 11511739691 | $1.88 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 04 | Set Bolt Cylinder Head | TORX | 1 | 11121721939 | $32.10 | Shop at ECS Tuning | ||||
| 05 | Washer | X | 11127550856 | $0.65 | Shop at ECS Tuning | |||||
| 06 | Cylinder Head Gasket Asbestos-Free | 1,74MM | 1 | 11121708585 | $71.98 | Shop at ECS Tuning | ||||
| 06 | Cylinder Head Gasket Asbestos-Free | 2,13MM(+0,3) | 1 | 11121708606 | $71.98 | Shop at ECS Tuning | ||||
| 07 | Support | 1 | 11611739345 | Shop at ECS Tuning | ||||||
| 08 | Shackle | 1 | 11611739346 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt with washer | M7X30-Z2 | 1 | 07/2007 | 07119901679 | $0.62 | Shop at ECS Tuning | |||
| 09 | Hex bolt with washer | M7X30 | 1 | 07119902921 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M8X35 | 1 | 07119912478 | $1.42 | Shop at ECS Tuning | ||||
| 11 | Screw plug | AM14X1,5 | 1 | 07119909704 | Shop at ECS Tuning | |||||
| 12 | Gasket ring | A14X18-CU | 1 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Temperature sensor coolant / oil | 1 | 13621433076 | $16.27 | Shop at ECS Tuning | |||||
| 14 | Gasket Set Cylinder Head Asbestos Free | 1 | 11121712309 | $249.04 | Shop at ECS Tuning | |||||
| 15 | Socket housing | 2 POL. | 1 | 12521427787 | $1.73 | Shop at ECS Tuning |
