Belt Drive-Vibration Damper for BMW 3 Series E46 318i (1998)

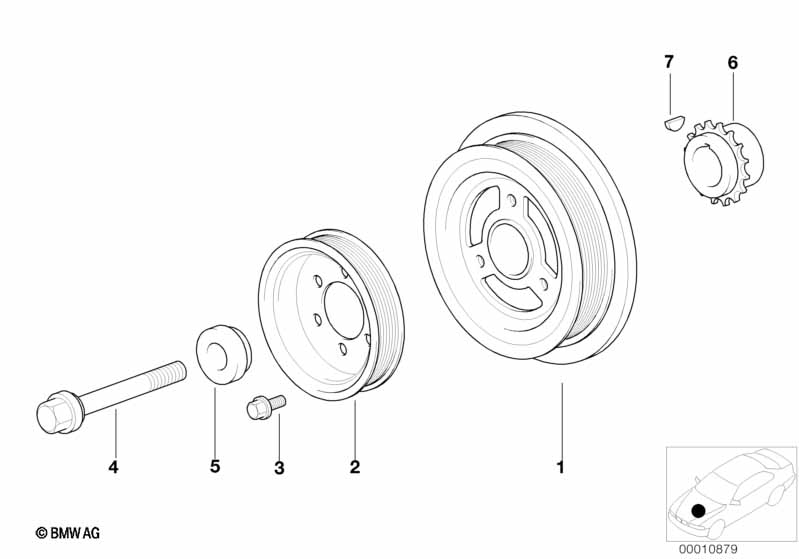

This Belt Drive-Vibration Damper technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vibration damper | 1 | 11231708816 | $388.48 | +core | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 02 | Pulley | 1 | 11281433684 | $30.32 | +core | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X14 ZNNIV SI | 3 | 07119905527 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M16X1,5X120 | 1 | 11211721100 | $8.20 | Shop at ECS Tuning | ||||
| 05 | Washer | 1 | 11231709977 | $8.20 | Shop at ECS Tuning | |||||
| 06 | Sprocket | 1 | 11211717913 | $28.13 | Shop at ECS Tuning | |||||
| 07 | Woodruff key | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
