Valve Timing Gear - Cam Shaft for BMW 3 Series E46 318i (1998)

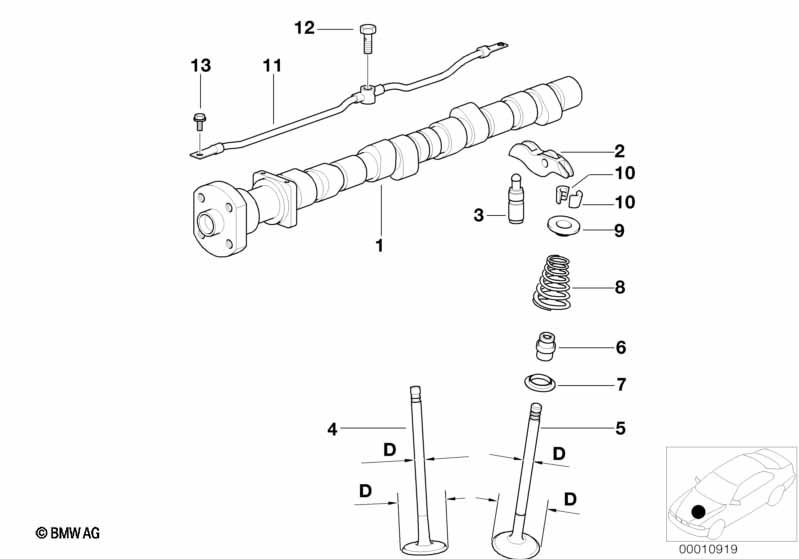

This Valve Timing Gear - Cam Shaft technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

Valve Timing Gear - Cam Shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Camshaft Camshaft 1 11311739176 $476.19 +core Shop at ECS Tuning
02 Roller drag lever 8 11331747592 $55.08 Shop at ECS Tuning
03 Alignment element 8 11331712010 $32.50 Shop at ECS Tuning
04 Intake valve 42,0/6,94MM 4 11341739114 Shop at ECS Tuning
04 Intake valve w.oversize VA.system +0,1mm 42,0/7,04MM 4 11341739659 $42.69 +core Shop at ECS Tuning
04 Intake valve w.oversize VA.system +0,2mm 42,0/7,14MM 4 11341739660 $42.69 +core Shop at ECS Tuning
05 Exhaust valve 36,0/6,94MM 4 11341739113 Shop at ECS Tuning
05 Exh. valve w.oversize VA.system +0,1mm 4 11341739668 ENDED Shop at ECS Tuning
05 Exhaust valve w.oversize VA.system+0,2mm 4 11341739669 ENDED Shop at ECS Tuning
06 Repair kit valve seal ring 1 11349059171 $35.29 Shop at ECS Tuning
07 Lower spring plate 8 11341735254 $3.77 Shop at ECS Tuning
08 Valve spring 8 11341403709 $7.88 Shop at ECS Tuning
09 Upper spring plate 8 11341436854 $3.77 Shop at ECS Tuning
10 Valve collet 16 11341307136 $1.08 Shop at ECS Tuning
11 Oil pipe 1 11421727054 $25.50 Shop at ECS Tuning
12 Hollow bolt M8X1 1 11121432205 $1.33 Shop at ECS Tuning
13 Hex bolt M5X 12MM 2 07119905138 Shop at ECS Tuning
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
