Timing case for BMW 3 Series E46 318i (1998)

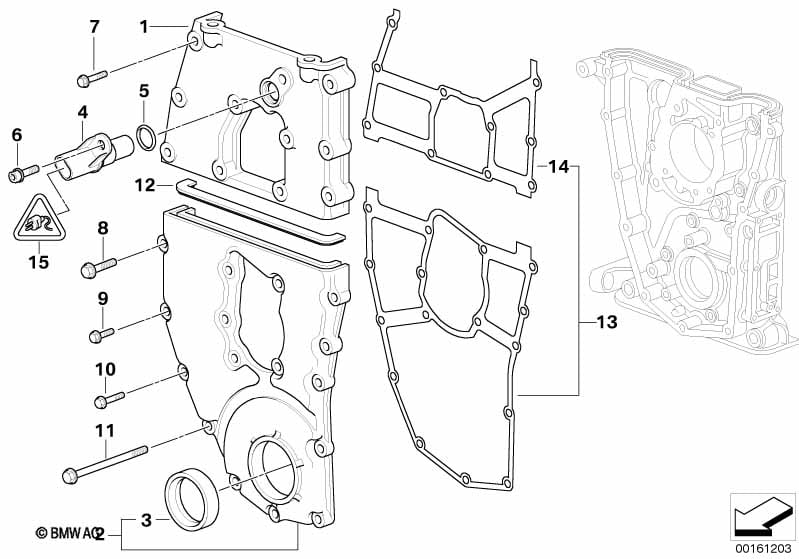

This Timing case technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing case cover, top | 1 | 11141433353 | $96.98 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | Timing case cover, bottom | 1 | 11141439645 | $158.65 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 03 | Shaft seal | 44X60X10 | 1 | 11141439570 | $24.92 | Shop at ECS Tuning | ||||
| 04 | Camshaft position sensor | 1 | 12147518628 | $116.05 | Shop at ECS Tuning | |||||
| 05 | O-ring | 17X3 | 1 | 12141748398 | $1.20 | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | M6X16 | 1 | 11421740488 | $0.98 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X35-U1-8.8 | 10 | 07119904589 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X30-ZNNIV SI | 1 | 07119905532 | $1.25 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X20 | 3 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X30-ZNNIV SI | 11 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M8X80-U1-8.8 | 2 | 07119906270 | $3.37 | Shop at ECS Tuning | ||||
| 12 | Profile-gasket | 1 | 11141709594 | $6.48 | Shop at ECS Tuning | |||||
| 13 | Gasket Steel | 1 | 11141739905 | Shop at ECS Tuning | ||||||
| 14 | Gasket Steel | 1 | 11141739906 | Shop at ECS Tuning | ||||||
| 15 | Socket housing | 3 POL. | 1 | 12521433917 | $2.53 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,5- 1,0 MM²/AG | 1 | 12520143433 | $4.00 | Shop at ECS Tuning | ||||
| -- | Protection cap | 2 POL. | 1 | 12521732694 | $2.10 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
