Vacuum control - engine for BMW 3 Series E46 318i (1998)

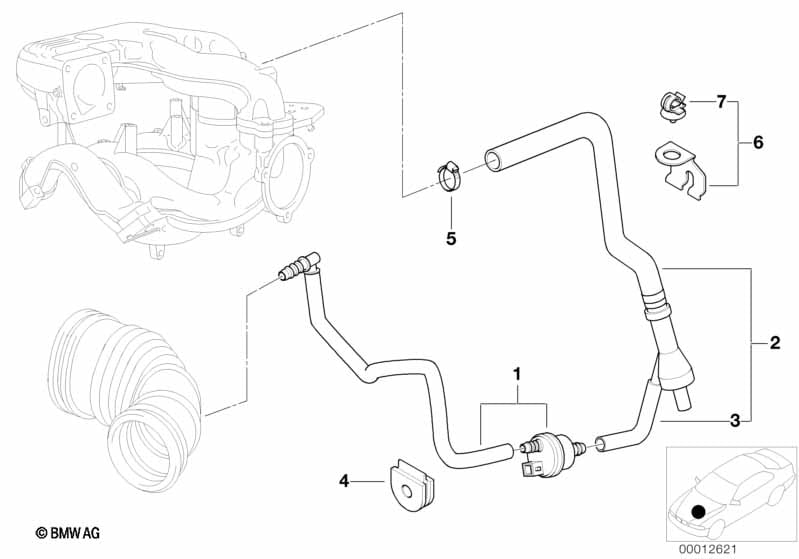

This Vacuum control - engine technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission |
S205A=Yes |
||||||||
| 01 | Air shut-off valve | 1 | 11611435988 | $26.23 | +core | Shop at ECS Tuning | ||||
| 02 | Sucking jet pump | 1 | 11611708578 | +core | Shop at ECS Tuning | |||||
| 03 | Hose elbow | 1 | 11611435981 | $8.05 | Shop at ECS Tuning | |||||
| 04 | Grommet | 1 | 11611435984 | $2.30 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L15-19 | 1 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 06 | Bracket | 1 | 11611437519 | $2.08 | Shop at ECS Tuning | |||||
| 07 | Clip retainer | 1 | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Vacuum control - engine?
- This technical diagram illustrates the Vacuum control - engine within the Engine group for the 3 Series E46 318i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Air shut-off valve (Part #11611435988).
- Which models use the hardware listed in this Vacuum control - engine?
- The hardware and components featured in the Vacuum control - engine are specific to the 3 Series E46 318i produced during 1998. These technical specifications ensure that parts like the Air shut-off valve (11611435988) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vacuum control - engine assembly?
- Each item in the Vacuum control - engine corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Air shut-off valve by locating its position on the schematic, which then links to the official BMW part number 11611435988 for the Engine section.
