Oil pan/oil level indicator for BMW 3 Series E46 318i (1998)

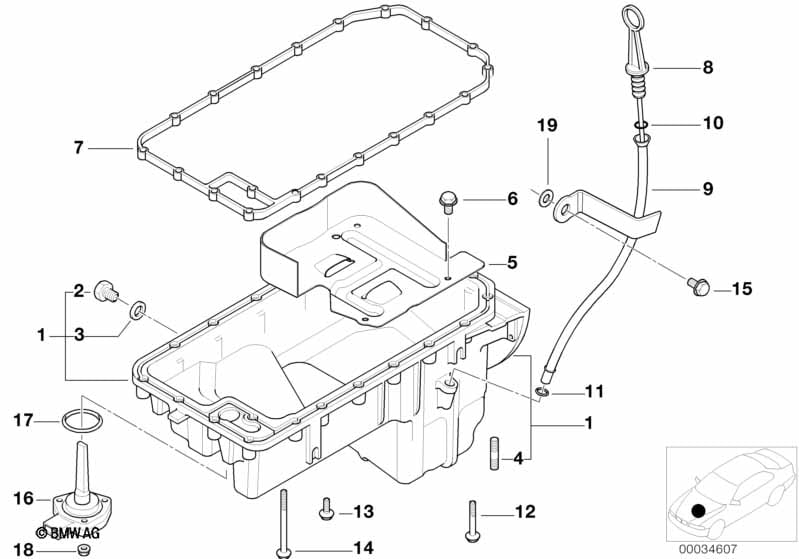

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11131432721 | $361.75 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| -- | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 02 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 04 | Stud bolt | M6X30-ZNNIV SI | 3 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 05 | Oil deflector | 1 | 11131709575 | Shop at ECS Tuning | ||||||
| 06 | Collar screw | M6X20 | 4 | 11131247056 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Profile-gasket | 1 | 11131432109 | $35.58 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt with washer | M6X80-Z1 | 1 | 11141747633 | $1.08 | ENDED | Shop at ECS Tuning | |||
| -- | Hex bolt with washer | M6X30-ZNNIV SI | 18 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| -- | Hex bolt with washer | M6X60-Z1 | 2 | 07119906124 | Shop at ECS Tuning | |||||
| 08 | Dipstick | 1 | 02/1998 | 11431247530 | Shop at ECS Tuning | |||||
| 08 | Dipstick | 1 | 11431247530 | Shop at ECS Tuning | ||||||
| 09 | Guide tube | 1 | 02/1998 | 11431432748 | Shop at ECS Tuning | |||||
| 09 | Guide tube | 1 | 11431432748 | Shop at ECS Tuning | ||||||
| 10 | O-ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
| 11 | O-ring | 14,5X3 | 1 | 11431287541 | $1.19 | Shop at ECS Tuning | ||||
| 12 | Hex bolt with washer | M6X60-Z1 | 2 | 07119906124 | Shop at ECS Tuning | |||||
| 13 | Hex bolt with washer | M6X30-ZNNIV SI | 18 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M6X80-U1-8.8 | 1 | 07119906085 | Shop at ECS Tuning | |||||
| 15 | Hex bolt with washer | M7X16-Z2 | 1 | 07119900509 | $0.30 | Shop at ECS Tuning | ||||
| 16 | Oil levelling sensor | 1 | 12617508003 | $163.50 | Shop at ECS Tuning | |||||
| 17 | Gasket ring | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 18 | Hex nut with plate | AM6-8-ZNNIV SI | 3 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
