Crankshaft with bearing shells for BMW 5 Series E39 525tds (1998)

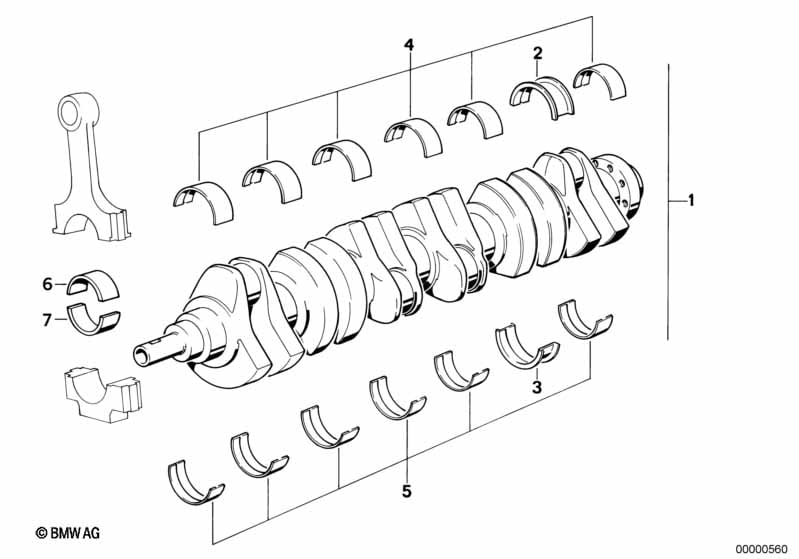

This Crankshaft with bearing shells technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crankshaft without bearing shells | 1 | 11212242897 | Shop at ECS Tuning | ||||||
| 02 | Guide-bearing Shell yellow | 60,00MM(0) | 1 | 11211743457 | $27.36 | Shop at ECS Tuning | ||||
| 02 | Guide-bearing Shell green | 60,00MM(0) | 1 | 11211743458 | $27.36 | ENDED | Shop at ECS Tuning | |||
| 02 | Guide-bearing Shell white | 60,00MM(0) | 1 | 11211743459 | $27.36 | Shop at ECS Tuning | ||||
| 02 | Guide-bearing Shell yellow | 59,75MM(+0,25) | 1 | 11211743460 | $37.98 | Shop at ECS Tuning | ||||
| 02 | Guide-bearing Shell green | 59,75MM(+0,25) | 1 | 11211743461 | $37.98 | Shop at ECS Tuning | ||||
| 02 | Guide-bearing Shell white | 59,75MM(+0,25) | 1 | 11211743462 | $37.98 | Shop at ECS Tuning | ||||
| 02 | Guide-bearing Shell yellow | 59,50MM(+0,50) | 1 | 11211743463 | $37.98 | Shop at ECS Tuning | ||||
| 02 | Guide-bearing Shell green | 59,50MM(+0,50) | 1 | 11211743464 | $33.48 | ENDED | Shop at ECS Tuning | |||
| 02 | Guide-bearing Shell white | 59,50MM(+0,50) | 1 | 11211743465 | $33.48 | ENDED | Shop at ECS Tuning | |||
| 03 | Guide-bearing Shell yellow | 60,00MM(0) | 1 | 11211705815 | $27.36 | Shop at ECS Tuning | ||||
| 03 | Guide-bearing Shell green | 60,00MM(0) | 1 | 11211705816 | $27.36 | Shop at ECS Tuning | ||||
| 03 | Guide-bearing Shell white | 60,00MM(0) | 1 | 11211705817 | $27.36 | ENDED | Shop at ECS Tuning | |||
| 03 | Guide-bearing Shell yellow | 59,75MM(+0,25) | 1 | 11211705824 | $37.98 | Shop at ECS Tuning | ||||
| 03 | Guide-bearing Shell green | 59,75MM(+0,25) | 1 | 11211705836 | $37.98 | Shop at ECS Tuning | ||||
| 03 | Guide-bearing Shell white | 59,75MM(+0,25) | 1 | 11211705837 | $37.98 | ENDED | Shop at ECS Tuning | |||
| 03 | Guide-bearing Shell yellow | 59,50MM(+0,50) | 1 | 11211705838 | $37.98 | Shop at ECS Tuning | ||||
| 03 | Guide-bearing Shell green | 59,50MM(+0,50) | 1 | 11211705839 | $37.98 | ENDED | Shop at ECS Tuning | |||
| 03 | Guide-bearing Shell white | 59,50MM(+0,50) | 1 | 11211705840 | $33.48 | ENDED | Shop at ECS Tuning | |||
| 04 | Bearing shell yellow | 60,00MM(0) | 6 | 11211706847 | $16.27 | Shop at ECS Tuning | ||||
| 04 | Bearing shell green | 60,00MM(0) | 6 | 11211706848 | $16.27 | Shop at ECS Tuning | ||||
| 04 | Bearing shell white | 60,00MM(0) | 6 | 11211706849 | $16.27 | Shop at ECS Tuning | ||||
| 04 | Bearing shell yellow | 59,75MM(+0,25) | 6 | 11211706850 | $16.10 | Shop at ECS Tuning | ||||
| 04 | Bearing shell green | 59,75MM(+0,25) | 6 | 11211706851 | $15.88 | ENDED | Shop at ECS Tuning | |||
| 04 | Bearing shell white | 59,75MM(+0,25) | 6 | 11211706852 | $15.88 | Shop at ECS Tuning | ||||
| 04 | Bearing shell yellow | 59,50MM(+0,50) | 6 | 11211706864 | $15.88 | Shop at ECS Tuning | ||||
| 04 | Bearing shell green | 59,50MM(+0,50) | 6 | 11211706865 | $15.88 | Shop at ECS Tuning | ||||
| 04 | Bearing shell white | 59,50MM(+0,50) | 6 | 11211706866 | $16.74 | Shop at ECS Tuning | ||||
| 05 | Bearing shell yellow | 60,00MM(0) | 6 | 11211717526 | $16.27 | Shop at ECS Tuning | ||||
| 05 | Bearing shell green | 60,00MM(0) | 6 | 11211717527 | $16.27 | Shop at ECS Tuning | ||||
| 05 | Bearing shell white | 60,00MM(0) | 6 | 11211717528 | $16.27 | Shop at ECS Tuning | ||||
| 05 | Bearing shell yellow | 59,75MM(+0,25) | 6 | 11211717779 | $16.10 | Shop at ECS Tuning | ||||
| 05 | Bearing shell green | 59,75MM(+0,25) | 6 | 11211717780 | $15.88 | Shop at ECS Tuning | ||||
| 05 | Bearing shell white | 59,75MM(+0,25) | 6 | 11211717781 | $15.88 | Shop at ECS Tuning | ||||
| 05 | Bearing shell yellow | 59,50MM(+0,50) | 6 | 11211717782 | $15.88 | Shop at ECS Tuning | ||||
| 05 | Bearing shell green | 59,50MM(+0,50) | 6 | 11211717783 | $15.88 | Shop at ECS Tuning | ||||
| 05 | Bearing shell white | 59,50MM(+0,50) | 6 | 11211717784 | $16.74 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, blue | 45,00MM(0) | 6 | 11247810425 | $23.32 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bearing shell | 45,00MM(0) | 6 | 11247810426 | $23.32 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, blue | 44,75MM(+0,25) | 6 | 11247810879 | $32.93 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 06 | Bearing shell, blue | 44,75MM(+0,25) | 6 | 11247810879 | $32.93 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Bearing shell | 44,75MM(+0,25) | 6 | 11247810881 | $23.32 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, blue | 44,50MM(+0,50) | 6 | 11247810880 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Bearing shell, blue | 44,50MM(+0,50) | 6 | 11247810880 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bearing shell | 44,50MM(+0,50) | 6 | 11247810882 | $23.32 | Shop at ECS Tuning | ||||
| 07 | Bearing shell | 45,00MM(0) | 6 | 11247810426 | $23.32 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bearing shell, blue | 45,00MM(0) | 6 | 11247810425 | $23.32 | Shop at ECS Tuning | ||||
| 07 | Bearing shell | 44,75MM(+0,25) | 6 | 11247810881 | $23.32 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bearing shell, blue | 44,75MM(+0,25) | 6 | 11247810879 | $32.93 | ENDED | Shop at ECS Tuning | |||
| 07 | Bearing shell | 44,50MM(+0,50) | 6 | 11247810882 | $23.32 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 07 | Bearing shell | 44,50MM(+0,50) | 6 | 11247810882 | $23.32 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bearing shell, blue | 44,50MM(+0,50) | 6 | 11247810880 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
