Mounting parts f intake manifold system for BMW 3 Series E46 318i (1998)

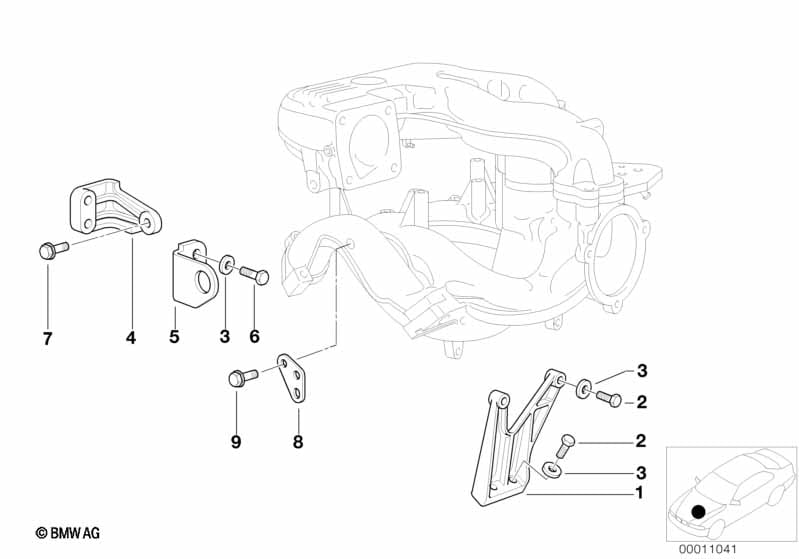

This Mounting parts f intake manifold system technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support | 1 | 11611743662 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt | M8X35 | 4 | 07119912478 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Washer | 8,4X16X1,6-ZNNV | 6 | 07119907030 | Shop at ECS Tuning | |||||
| 04 | Support | 1 | 11611739345 | Shop at ECS Tuning | ||||||
| 05 | Shackle | 1 | 11611739346 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt | M8X35 | 2 | 07119912478 | $1.42 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M7X30-Z2 | 1 | 07/2007 | 07119901679 | $0.62 | Shop at ECS Tuning | |||
| 07 | Hex bolt with washer | M7X30 | 1 | 07119902921 | Shop at ECS Tuning | |||||
| 08 | Support | 1 | 11611743700 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M7X16-Z2 | 1 | 07119900509 | $0.30 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
