Housing with compensating shafts for BMW 3 Series E46 318i (1998)

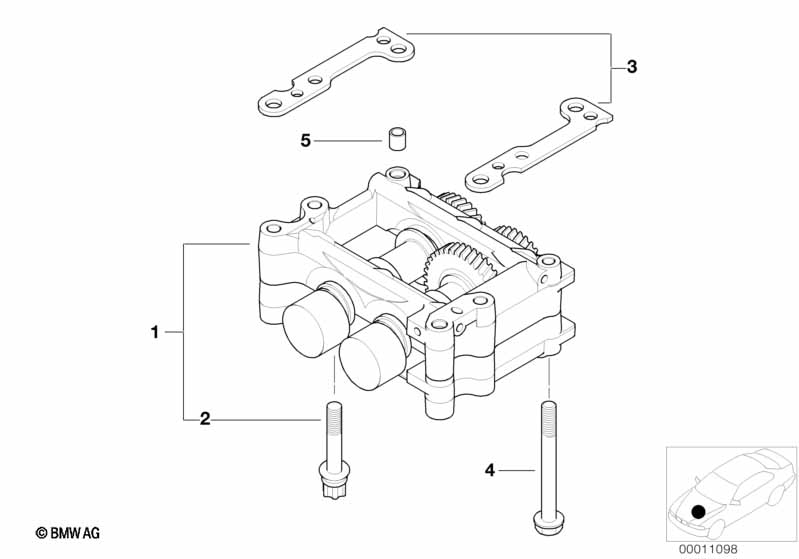

This Housing with compensating shafts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Housing with compensating shafts | 1 | 11271433604 | $687.65 | Shop at ECS Tuning | |||||
| 02 | Torx bolt | M8X56 | 6 | 11271433607 | Shop at ECS Tuning | |||||
| 03 | Shim | 1.80MM | 1 | 11271439584 | Shop at ECS Tuning | |||||
| 03 | Shim | 1.82MM | 1 | 11271439585 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 1.85MM | 1 | 11271439586 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 1.87MM | 1 | 11271439587 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 1.90MM | 1 | 11271439588 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 1.92MM | 1 | 11271439589 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 1.95MM | 1 | 11271439590 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 1.97MM | 1 | 11271439591 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 1.98MM | 1 | 11271439592 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 1.99MM | 1 | 11271439593 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2.00MM | 1 | 11271439594 | Shop at ECS Tuning | |||||
| 03 | Shim | 2.02MM | 1 | 11271439595 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2.03MM | 1 | 11271439596 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2.04MM | 1 | 11271439597 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2.06MM | 1 | 11271439598 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2.07MM | 1 | 11271439599 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2.08MM | 1 | 11271439600 | Shop at ECS Tuning | |||||
| 03 | Shim | 2.09MM | 1 | 11271439601 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2.11MM | 1 | 11271439602 | Shop at ECS Tuning | |||||
| 03 | Shim | 2.12MM | 1 | 11271439603 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2.13MM | 1 | 11271439604 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2.15MM | 1 | 11271439605 | Shop at ECS Tuning | |||||
| 03 | Shim | 2.16MM | 1 | 11271439606 | Shop at ECS Tuning | |||||
| 03 | Shim | 2.19MM | 1 | 11271439607 | Shop at ECS Tuning | |||||
| 03 | Shim | 2.22MM | 1 | 11271439608 | Shop at ECS Tuning | |||||
| 03 | Shim | 2.25MM | 1 | 11271439609 | Shop at ECS Tuning | |||||
| 04 | Collar screw | M8X110 | 6 | 11271711992 | Shop at ECS Tuning | |||||
| 05 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
