Crankshaft Connecting Rod for BMW 3 Series E46 318d (2003)

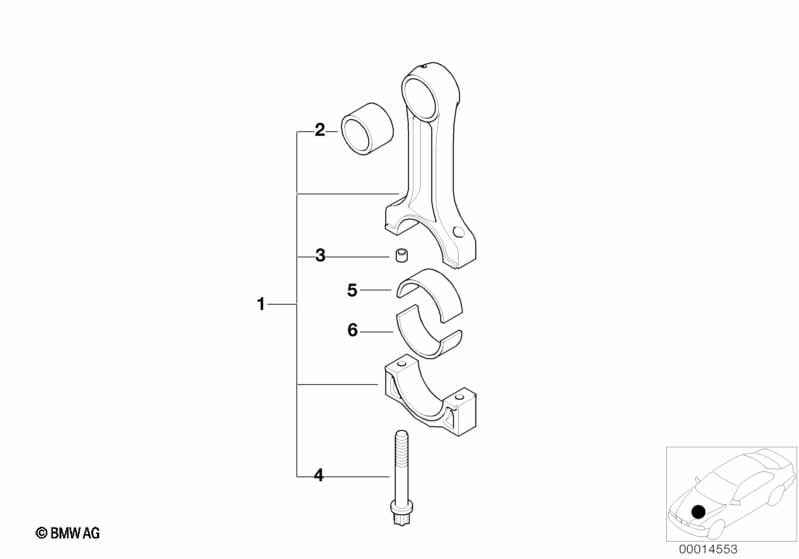

This Crankshaft Connecting Rod technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set connecting rod | 1 | 11242247518 | $180.79 | Shop at ECS Tuning | |||||
| 02 | Connecting rod bush | 4 | 11242246540 | Shop at ECS Tuning | ||||||
| 03 | Dowel | 7,5X11,2 | 8 | 06/2006 | 11241280833 | $1.18 | Shop at ECS Tuning | |||
| 04 | Connecting rod bolt | M9X47MM | 8 | 11247589671 | $4.02 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 45,00MM(0) | 4 | 11247810425 | $23.32 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bearing shell | 45,00MM(0) | 4 | 11247810426 | $23.32 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 44,75MM(+0,25) | 4 | 11247810879 | $32.93 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Bearing shell | 44,75MM(+0,25) | 4 | 11247810881 | $23.32 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 44,50MM(+0,50) | 4 | 11247810880 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bearing shell | 44,50MM(+0,50) | 4 | 11247810882 | $23.32 | Shop at ECS Tuning | ||||
| 06 | Bearing shell | 45,00MM(0) | 4 | 11247810426 | $23.32 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bearing shell, blue | 45,00MM(0) | 4 | 11247810425 | $23.32 | Shop at ECS Tuning | ||||
| 06 | Bearing shell | 44,75MM(+0,25) | 4 | 11247810881 | $23.32 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bearing shell, blue | 44,75MM(+0,25) | 4 | 11247810879 | $32.93 | ENDED | Shop at ECS Tuning | |||
| 06 | Bearing shell | 44,50MM(+0,50) | 4 | 11247810882 | $23.32 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bearing shell, blue | 44,50MM(+0,50) | 4 | 11247810880 | ENDED | Shop at ECS Tuning | ||||
