Lubrication system/Oil pump for BMW 3 Series E46 320d (2001)

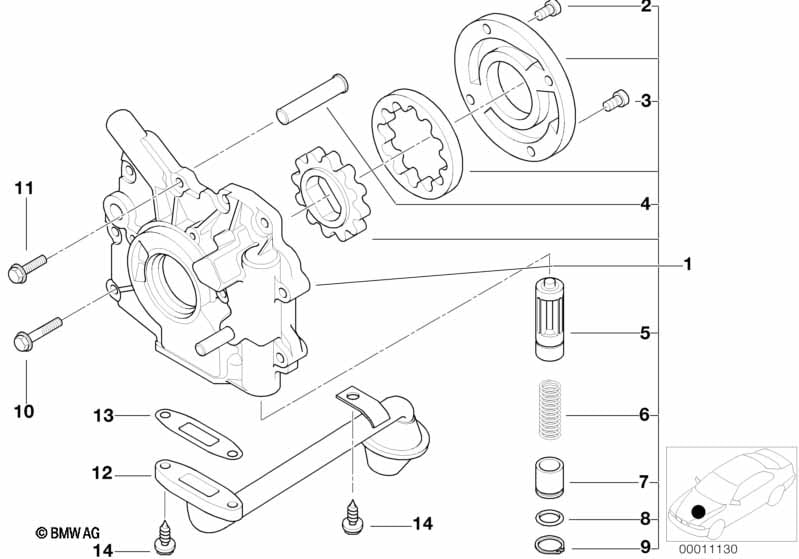

This Lubrication system/Oil pump technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump | 1 | 11412246824 | +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Collar screw | M6X18-ZNS3 | 2 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
| 02 | Fillister-head screw | M6X14 | 3 | 11412244769 | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | M7X16 | 1 | 11412247036 | Shop at ECS Tuning | |||||
| 04 | Bolt | 1 | 11412246884 | Shop at ECS Tuning | ||||||
| 05 | Control valve | 1 | 11141247393 | $9.17 | Shop at ECS Tuning | |||||
| 06 | Coil spring | 1 | 11412247876 | Shop at ECS Tuning | ||||||
| 07 | Spacer bush | 1 | 11411703950 | $1.95 | ENDED | Shop at ECS Tuning | ||||
| 08 | O-ring | 1 | 11412244600 | Shop at ECS Tuning | ||||||
| 09 | Lock Ring | 21X1 | 1 | 07119934625 | $0.24 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X30-Z1-PHR | 2 | 07119902064 | $0.45 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X20 | 6 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 12 | Intake tube | 1 | 11412246805 | Shop at ECS Tuning | ||||||
| 13 | Gasket Asbestos Free | 1 | 11412245177 | $2.42 | Shop at ECS Tuning | |||||
| 14 | Collar screw | M6X18-ZNS3 | 3 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
