Lubrication system/Oil pump with drive for BMW 6 Series E24 628CSi (1982)

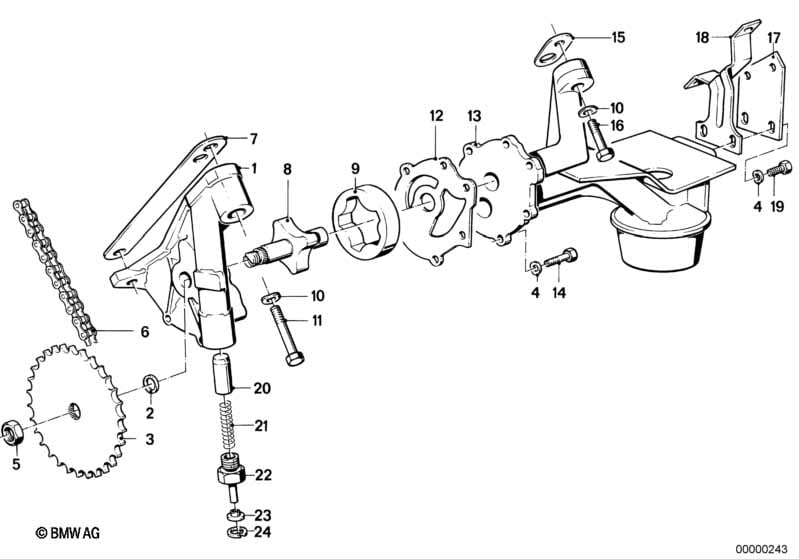

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump housing | 1 | 11411713410 | $58.02 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| 03 | Sprocket | 1 | 11411273689 | $30.94 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| 04 | Spring washer Black | B6-ZN | X | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M10X1 FLACH | 1 | 07119901301 | $0.33 | Shop at ECS Tuning | ||||
| 06 | Chain | 1 | 11417577656 | $59.48 | Shop at ECS Tuning | |||||
| 07 | Spacer plate | 0,1MM | X | 11411250562 | $1.57 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rotor inner | 1 | 11411267380 | $40.50 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| 09 | Rotor,outer | 1 | 11411250504 | $24.11 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| 10 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X45-8.8-ZNS3 | 2 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Intermediate plate | 1 | 11411714755 | $2.77 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| 13 | Oil pump cover | 1 | 11411278387 | $81.47 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M6X22-8.8-ZNS3 | 6 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Spacer plate | 0,1MM | X | 11411250521 | $1.57 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| 15 | Spacer plate | 0,3MM | X | 11411250522 | $1.15 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X30 | 1 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| 18 | Bracket | 1 | 11411271279 | $4.46 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 20 | Piston | 1 | 11421271320 | $3.21 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| 21 | Compression spring | 1 | 11411744324 | $1.27 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| 22 | Screw plug | 1 | 11411261792 | $23.60 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| 23 | Spring pocket | 1 | 11411267050 | $3.60 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| 24 | Lock Ring | 16X1 | 1 | 07119934619 | $0.18 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
