Lambda Probe Fixings for BMW 3 Series E46 323Ci (2000)

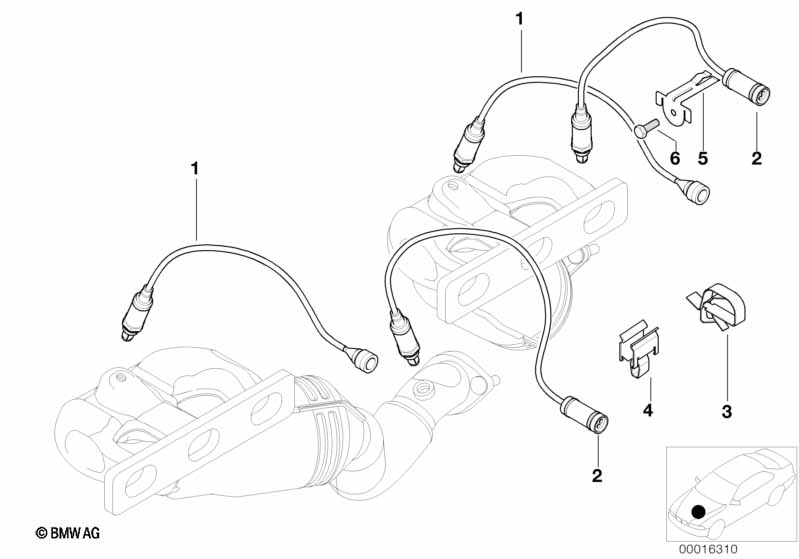

This Lambda Probe Fixings technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Regulating lambda probe | L=320MM | 2 | 11781742050 | $215.65 | Shop at ECS Tuning | ||||
| 02 | Lambda Monitor sensor | L=990MM | 2 | 11781433940 | $215.65 | Shop at ECS Tuning | ||||
| 03 | Cable clamp | 1 | 12521436023 | $0.68 | Shop at ECS Tuning | |||||
| 04 | Holder | 4 | 11787570482 | Shop at ECS Tuning | ||||||
| 05 | Bracket for lambda probe cable | 1 | 11781437782 | $2.30 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 323Ci Lambda Probe Fixings?
- This technical diagram illustrates the Lambda Probe Fixings within the Engine group for the 3 Series E46 323Ci produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Regulating lambda probe (Part #11781742050).
- Which models use the hardware listed in this Lambda Probe Fixings?
- The hardware and components featured in the Lambda Probe Fixings are specific to the 3 Series E46 323Ci produced during 2000. These technical specifications ensure that parts like the Regulating lambda probe (11781742050) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lambda Probe Fixings assembly?
- Each item in the Lambda Probe Fixings corresponds to the numbered list below the illustration. For the 3 Series E46 323Ci, you can identify the Regulating lambda probe by locating its position on the schematic, which then links to the official BMW part number 11781742050 for the Engine section.
