Emission control-air pump for BMW 3 Series E46 325i (2023)
This Emission control-air pump technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with EU4 exhaust emissions standard or Automatic transmission |
S167A=Yes S205A=Yes |
|||||||||
| 01 | Air pump | 1 | 11727553056 | $399.52 | Shop at ECS Tuning | |||||

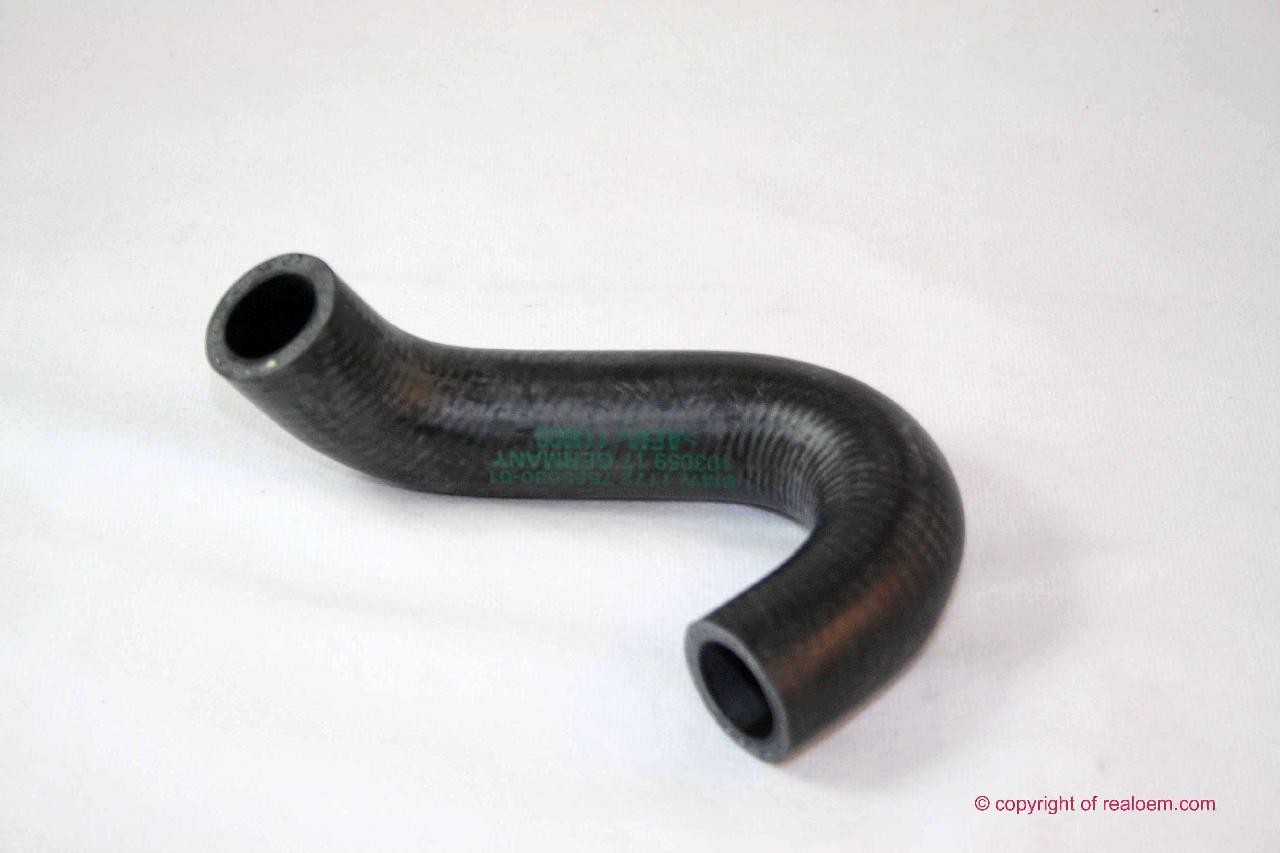

| 02 | Pressure hose assy | 1 | 11727555680 | $22.73 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 04 | Rubber Mounting | M6 | 3 | 11727559515 | $15.60 | Shop at ECS Tuning | ||||
| 05 | Holder | 1 | 11721715273 | $22.92 | Shop at ECS Tuning | |||||
| 06 | Holder | 1 | 11721714230 | $7.17 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X12-U1 | 3 | 07119904511 | $0.62 | Shop at ECS Tuning | ||||
