Emission control-air pump for BMW 3 Series E46 318i (2001)

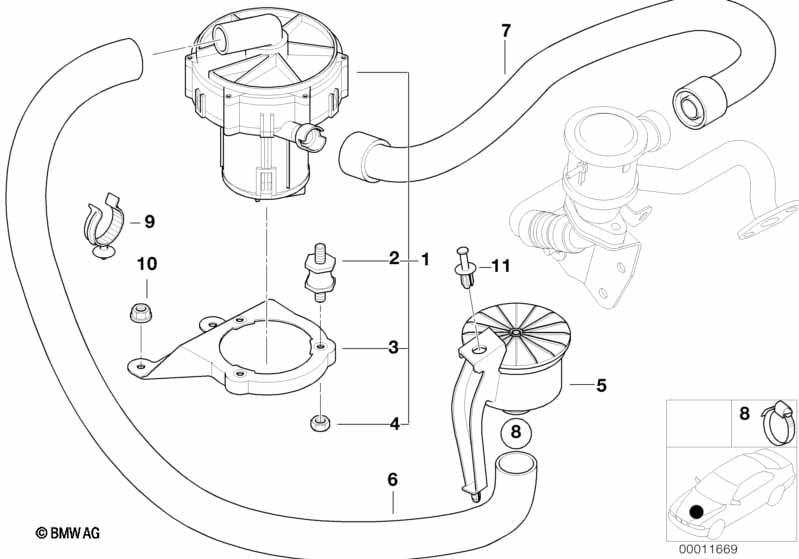

This Emission control-air pump technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air pump | 1 | 11721715347 | $399.52 | Shop at ECS Tuning | |||||
| 02 | Rubber Mounting | M6 | 3 | 11727559515 | $15.60 | Shop at ECS Tuning | ||||
| 03 | Secondary air pump bracket | 1 | 11721703029 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | AM6-8-ZNNIV SI | 3 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M6 ZNT | 3 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Secondary air filter | 1 | 11721716578 | $15.60 | +core | Shop at ECS Tuning | ||||
| 06 | Suction hose | 1 | 11721715295 | $35.35 | Shop at ECS Tuning | |||||
| 07 | Pressure hose assy | 1 | 11721715051 | $34.29 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | L32-38 | 1 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 09 | Clamp | 3 | 11721716559 | $1.42 | Shop at ECS Tuning | |||||
| 10 | Self-locking hex nut | M6 | 3 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 11 | Expanding rivet | 1 | 17111712963 | $0.27 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
