Lambda Probe Fixings for BMW 3 Series E46 330Ci

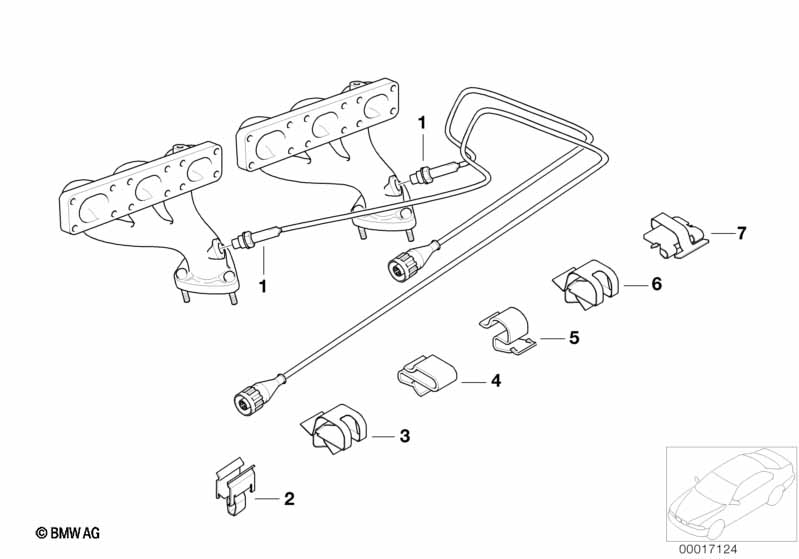

This Lambda Probe Fixings technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Regulating lambda probe | L=990MM | 2 | 09/2000 | 11781437586 | $215.65 | Shop at ECS Tuning | |||
| 02 | Holder | 2 | 09/2000 | 11787570482 | Shop at ECS Tuning | |||||
| 03 | Cable clamp | 3 | 09/2000 | 12521436023 | $0.68 | Shop at ECS Tuning | ||||
| 04 | Fixing clamp | A=3,5 - 6,0MM | 1 | 09/2000 | 07147547239 | $0.58 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Ci Lambda Probe Fixings?
- This technical diagram illustrates the Lambda Probe Fixings within the Engine group for the 3 Series E46 330Ci. It provides a detailed exploded view of the components, identifying key parts such as the Regulating lambda probe (Part #11781437586).
- Which models use the hardware listed in this Lambda Probe Fixings?
- The hardware and components featured in the Lambda Probe Fixings are specific to the 3 Series E46 330Ci. These technical specifications ensure that parts like the Regulating lambda probe (11781437586) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lambda Probe Fixings assembly?
- Each item in the Lambda Probe Fixings corresponds to the numbered list below the illustration. For the 3 Series E46 330Ci, you can identify the Regulating lambda probe by locating its position on the schematic, which then links to the official BMW part number 11781437586 for the Engine section.
