Exhaust manifold for BMW 3 Series E46 323i (2000)

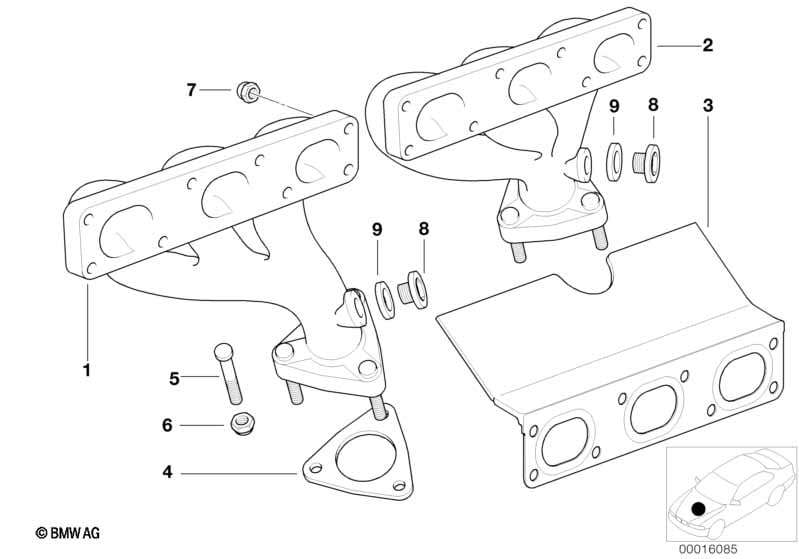

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold, front | 1 | 11621706538 | $208.69 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Exhaust manifold, rear | 1 | 11621706539 | $208.69 | ENDED, +core | Shop at ECS Tuning | ||||

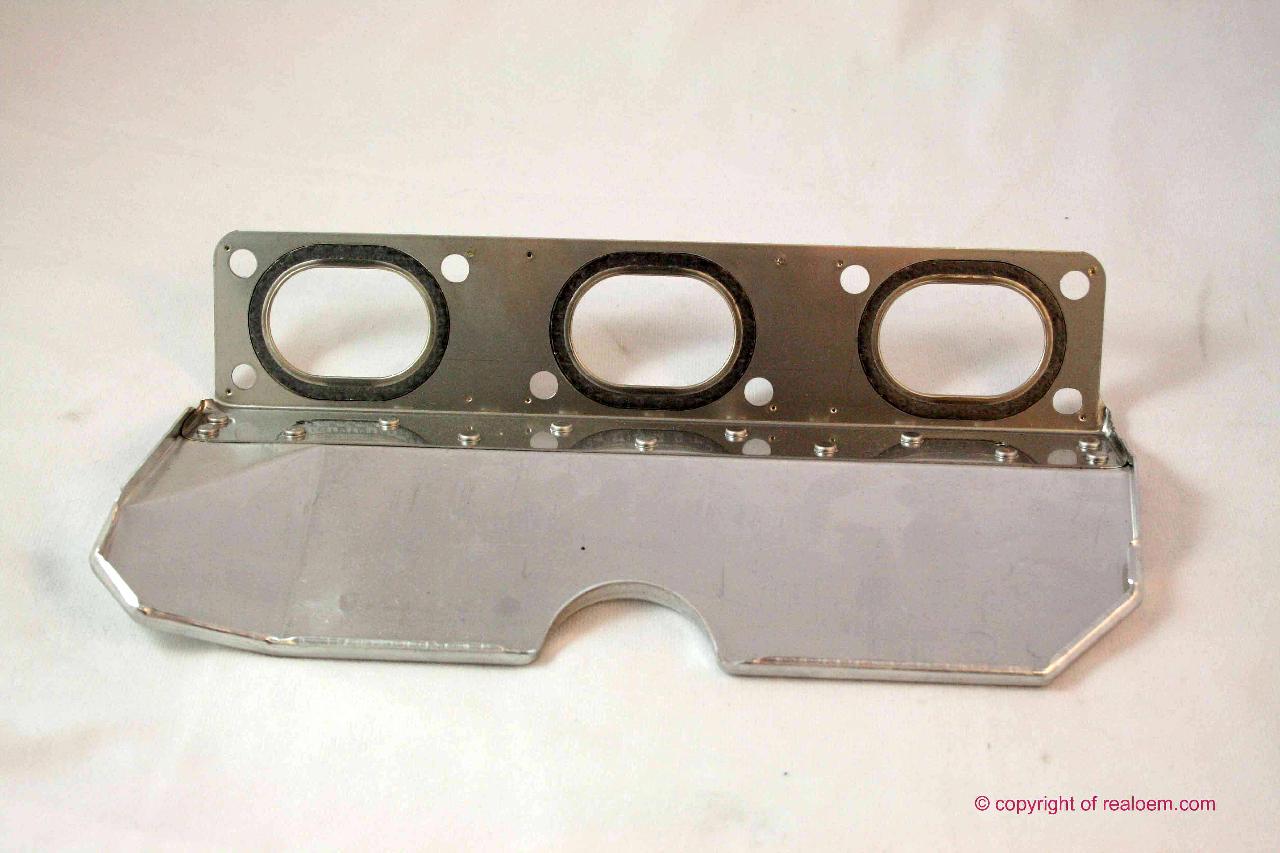

| 03 | Gasket w/heat prot.shield asbestosfree | 2 | 11621732969 | $39.83 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | 16 | 11721437202 | $0.72 | Shop at ECS Tuning | |||||
| 04 | Gasket Asbestos Free | 2 | 18301716888 | $11.75 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M10X40-SW16 | 6 | 11621427586 | $21.57 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 07 | Hex nut | X | 11721437202 | $0.72 | Shop at ECS Tuning | |||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 08 | Screw Plug With Gasket Ring | M18X1,5 | 2 | 11621437517 | $11.43 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
