Cooling System Water Hoses for BMW 5 Series E39 535i (2003)

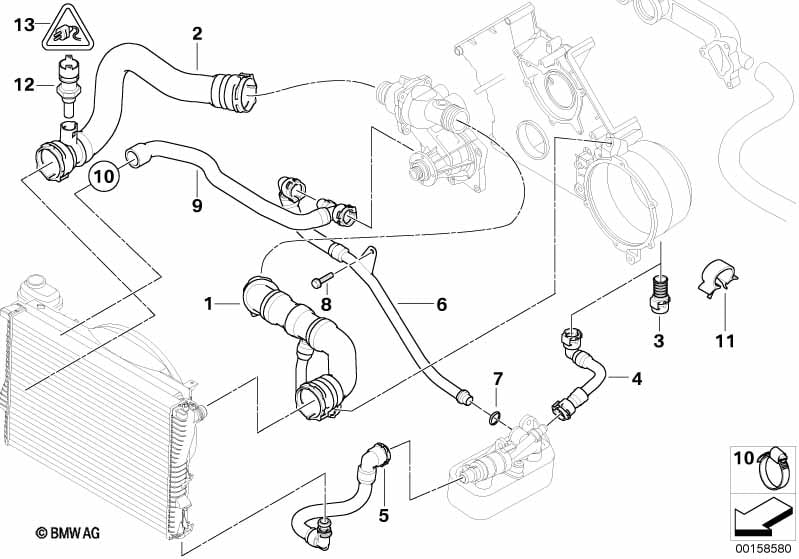

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Heater water hose see main section 64 |
|||||||||
| 01 | Water hose | 1 | 09/1998 | 11537505228 | $37.73 | +core | Shop at ECS Tuning | |||
| 02 | Water hose | 1 | 09/1998 | 11537505229 | $37.73 | +core | Shop at ECS Tuning | |||
| 04 | Water hose | 1 | 09/1998 | 11537511207 | $15.09 | Shop at ECS Tuning | ||||
| 05 | Water hose | 1 | 09/1998 | 11531711385 | $15.09 | +core | Shop at ECS Tuning | |||
| 06 | Coolant pipe, return line | 1 | 09/1998 | 11531711384 | $57.28 | +core | Shop at ECS Tuning | |||
| 07 | O-ring | 14,4X3,0MM | 1 | 09/1998 | 11537501777 | $1.19 | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 09/1998 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 09 | Water hose | 1 | 09/1998 | 11531711381 | $18.87 | +core | Shop at ECS Tuning | |||
| 10 | Hose clamp | L28-33 | 1 | 09/1998 | 07129952113 | $0.96 | Shop at ECS Tuning | |||
| 11 | Cable holder | D=20MM | 1 | 09/1998 | 61131379136 | $1.30 | Shop at ECS Tuning | |||
| 12 | Temperature sensor, coolant | 1 | 09/1998 | 13621433077 | $25.03 | Shop at ECS Tuning | ||||
| 13 | Socket housing | 2 POL. | 1 | 09/1998 | 12521427615 | $1.73 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 09/1998 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | ||
Notes
- +core = plus core charge (possibility of a return of the old part)
- SI = Service Information
