Engine acoustics for BMW 7 Series E38 740i (2001)

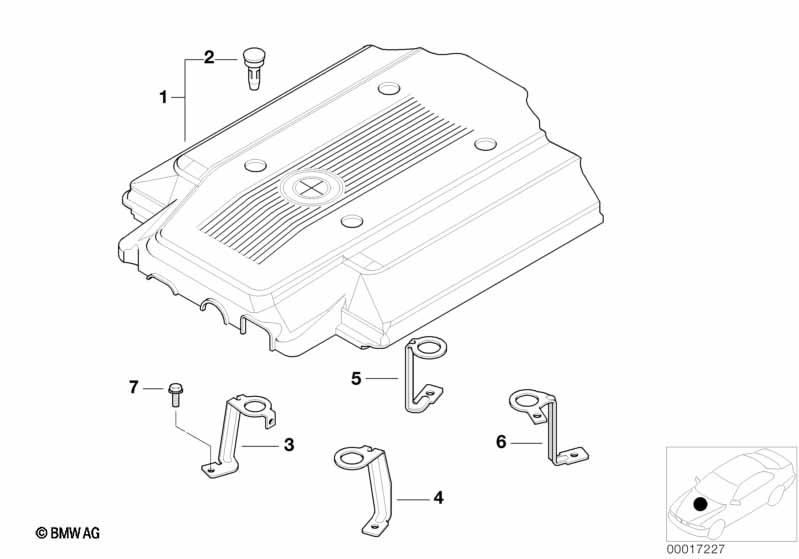

This Engine acoustics technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound protection cap | 1 | 09/1998 | 11611435457 | $351.38 | Shop at ECS Tuning | ||||
| 02 | Lock | 4 | 11611742968 | $28.09 | Shop at ECS Tuning | |||||
| 03 | Bracket front right | 1 | 11611742207 | $5.52 | Shop at ECS Tuning | |||||
| 04 | Bracket rear right | 1 | 11611742208 | $5.52 | Shop at ECS Tuning | |||||
| 05 | Bracket front left | 1 | 11611742209 | $5.52 | Shop at ECS Tuning | |||||
| 06 | Bracket rear left | 1 | 11611742210 | $5.52 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X16-U1-8.8 | 4 | 07119904524 | $0.25 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740i Engine acoustics?
- This technical diagram illustrates the Engine acoustics within the Engine group for the 7 Series E38 740i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Sound protection cap (Part #11611435457).
- Which models use the hardware listed in this Engine acoustics?
- The hardware and components featured in the Engine acoustics are specific to the 7 Series E38 740i produced during 2001. These technical specifications ensure that parts like the Sound protection cap (11611435457) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine acoustics assembly?
- Each item in the Engine acoustics corresponds to the numbered list below the illustration. For the 7 Series E38 740i, you can identify the Sound protection cap by locating its position on the schematic, which then links to the official BMW part number 11611435457 for the Engine section.
