Emission control-air pump for BMW 7 Series E38 740i (2001)

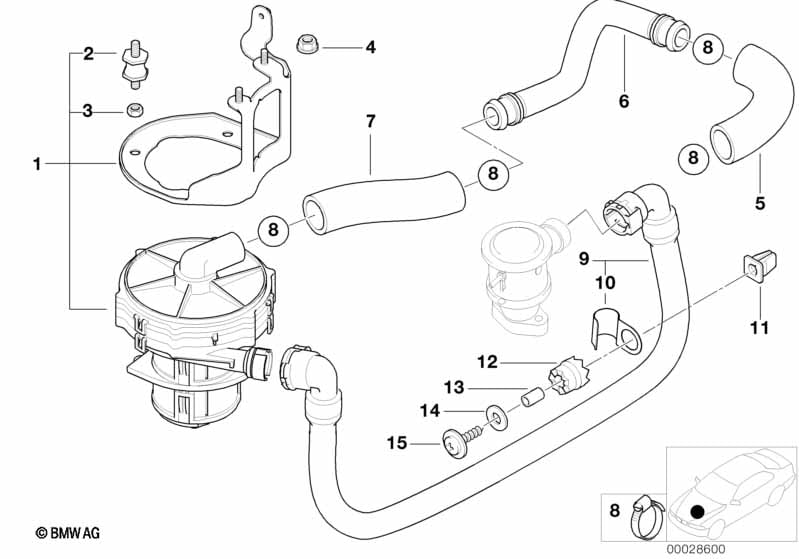

This Emission control-air pump technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air pump | 1 | 09/1998 | 11721707585 | $399.52 | Shop at ECS Tuning | ||||
| 02 | Rubber Mounting | M6 | 3 | 09/1998 | 11727559515 | $15.60 | Shop at ECS Tuning | |||
| 03 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 09/1998 | 07119905544 | $0.64 | Shop at ECS Tuning | |||
| 04 | Hex nut with plate | M6 ZNT | 2 | 09/1998 | 07149156628 | $0.25 | Shop at ECS Tuning | |||
| 05 | Hose | 1 | 09/1998 | 11721742134 | $11.68 | Shop at ECS Tuning | ||||
| 06 | Suction pipe | 1 | 09/1998 | 11721742135 | $67.30 | ENDED | Shop at ECS Tuning | |||
| 07 | Hose | 1 | 09/1998 | 11721741830 | $17.83 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | L32-38 | 4 | 09/1998 | 07129952115 | $1.27 | Shop at ECS Tuning | |||
| 09 | Pressure hose assy | 1 | 09/1998 | 11721438264 | $34.29 | Shop at ECS Tuning | ||||
| 10 | Clip | 1 | 09/1998 | 11721439521 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 11 | Expanding nut | ST 6.3 | 1 | 09/1998 | 64121379221 | $0.60 | Shop at ECS Tuning | |||
| 12 | Rubber Mounting | 1 | 09/1998 | 34511162818 | $2.57 | Shop at ECS Tuning | ||||
| 13 | Spacer sleeve | ZNS3 | 1 | 09/1998 | 07146977328 | $1.21 | Shop at ECS Tuning | |||
| 14 | Washer | 6,4X25X1,5 | 1 | 09/1998 | 07146977329 | $0.64 | Shop at ECS Tuning | |||
| 15 | Hi-lo screw | 4,9X40 | 1 | 09/1998 | 64501380496 | $1.27 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740i Emission control-air pump?
- This technical diagram illustrates the Emission control-air pump within the Engine group for the 7 Series E38 740i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Air pump (Part #11721707585).
- Which models use the hardware listed in this Emission control-air pump?
- The hardware and components featured in the Emission control-air pump are specific to the 7 Series E38 740i produced during 2001. These technical specifications ensure that parts like the Air pump (11721707585) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emission control-air pump assembly?
- Each item in the Emission control-air pump corresponds to the numbered list below the illustration. For the 7 Series E38 740i, you can identify the Air pump by locating its position on the schematic, which then links to the official BMW part number 11721707585 for the Engine section.
