Lubrication system/Oil pump with drive for BMW 7 Series E38 730d (2001)

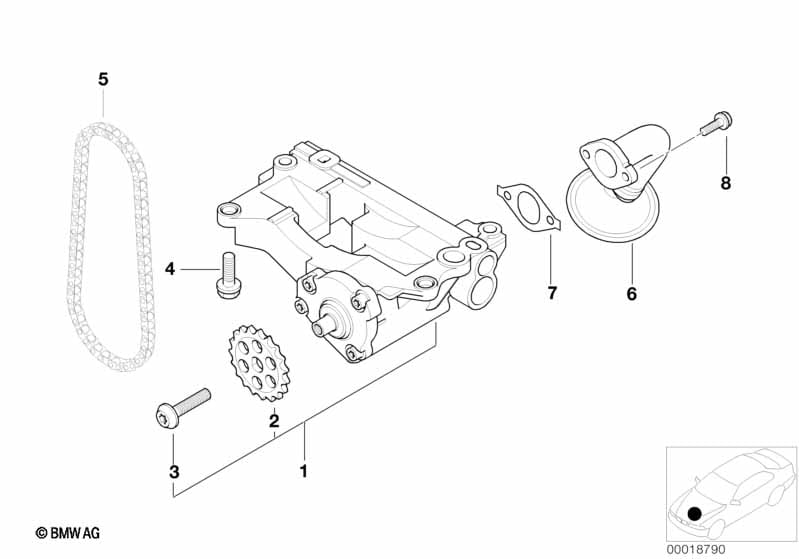

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump | 1 | 11417789838 | $364.55 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Collar screw | M6X18-ZNS3 | 2 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
| 02 | Oil pump sprocket | 1 | 11412247304 | $15.00 | Shop at ECS Tuning | |||||
| 03 | Torx bolt | M8X35 | 1 | 11412248162 | $1.03 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X28-Z1-PHR | 4 | 07119904507 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Chain | 1 | 11412249745 | $30.08 | Shop at ECS Tuning | |||||
| 06 | Intake tube | 1 | 11412247754 | Shop at ECS Tuning | ||||||
| 07 | Gasket Asbestos Free | 1 | 11412247885 | Shop at ECS Tuning | ||||||
| 08 | Collar screw | M6X18-ZNS3 | 2 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
