Emission control-air pump for BMW 5 Series E39 528i (2000)

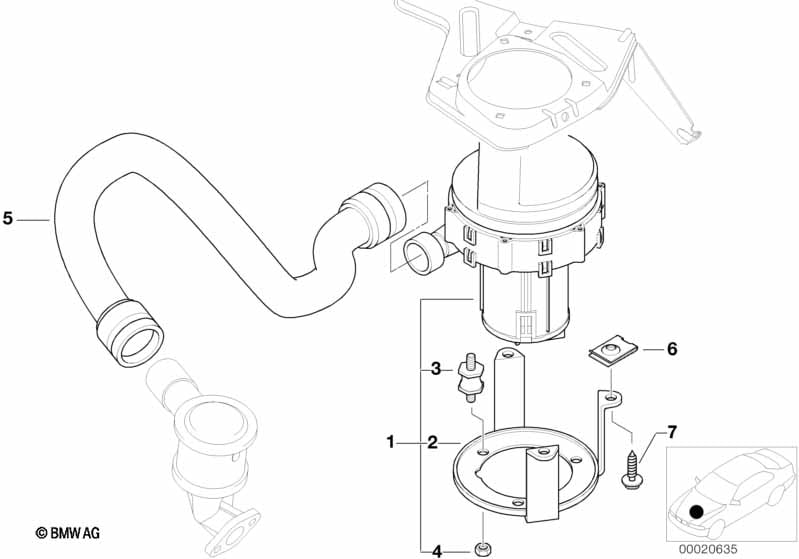

This Emission control-air pump technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air pump | 1 | 09/1998 | 11721433959 | $399.52 | Shop at ECS Tuning | ||||
| 02 | Holder | 1 | 09/1998 | 11721742479 | $28.29 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 09/1998 | 07119905544 | $0.64 | Shop at ECS Tuning | |||
| 05 | Pressure hose assy | 1 | 09/1998 | 11721435456 | $22.73 | Shop at ECS Tuning | ||||
| 06 | Body nut | ST6,3-1-ZNS3 | 3 | 09/1998 | 07129904231 | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST6,3X16-C-ZN | 3 | 09/1998 | 07119916822 | $0.20 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Emission control-air pump?
- This technical diagram illustrates the Emission control-air pump within the Engine group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Air pump (Part #11721433959).
- Which models use the hardware listed in this Emission control-air pump?
- The hardware and components featured in the Emission control-air pump are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Air pump (11721433959) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emission control-air pump assembly?
- Each item in the Emission control-air pump corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Air pump by locating its position on the schematic, which then links to the official BMW part number 11721433959 for the Engine section.
