Short engine for BMW 1502-2002tii 1602 (1973)

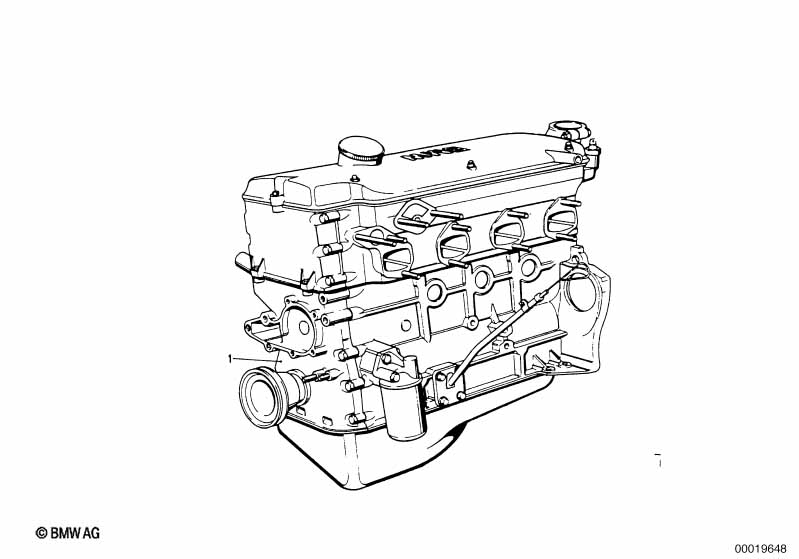

This Short engine technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. short engine | 16 A | 1 | 04/1964 | 10/1975 | 11001263381 | $3799.98 | ENDED | Shop at ECS Tuning | |
| 02 | Set Mounting Parts Short Engine | 1 | 11009059265 | $41.75 | Shop at ECS Tuning | |||||
| 02 | Gasket Set Cylinder Head Asbestos Free | 1 | 02/1962 | 07/1977 | 11129065680 | $176.55 | ENDED | Shop at ECS Tuning | ||
| 02 | Gasket Set Cylinder Head Asbestos Free | 1 | 02/1962 | 07/1977 | 11129065702 | $197.75 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Gasket ring | 1 | 02/1962 | 07/1977 | 13118685556 | Shop at ECS Tuning | ||||
| -- | Gasket Asbestos Free | 3 | 02/1962 | 07/1977 | 13119065692 | $3.00 | Shop at ECS Tuning | |||
| -- | Gasket Asbestos Free | 1 | 02/1962 | 07/1977 | 11619065693 | $6.07 | Shop at ECS Tuning | |||
| -- | Gasket ring | 1 | 02/1962 | 07/1977 | 11530588206 | $1.13 | ENDED | Shop at ECS Tuning | ||
| -- | Gasket ring | A8X11,5 | 1 | 02/1962 | 07/1977 | 11421252343 | $0.25 | Shop at ECS Tuning | ||
| -- | Valve seal ring | D=13,9MM | 8 | 02/1962 | 07/1977 | 11341261269 | Shop at ECS Tuning | |||
| 02 | Seal and gasket set, engine | 1 | 09/1963 | 07/1977 | 11000690010 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1602 Short engine?
- This technical diagram illustrates the Short engine within the Engine group for the 1502-2002tii 1602 produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Exch. short engine (Part #11001263381).
- Which models use the hardware listed in this Short engine?
- The hardware and components featured in the Short engine are specific to the 1502-2002tii 1602 produced during 1973. These technical specifications ensure that parts like the Exch. short engine (11001263381) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Short engine assembly?
- Each item in the Short engine corresponds to the numbered list below the illustration. For the 1502-2002tii 1602, you can identify the Exch. short engine by locating its position on the schematic, which then links to the official BMW part number 11001263381 for the Engine section.
