Oil Pan for BMW 1502-2002tii 2002 (1973)

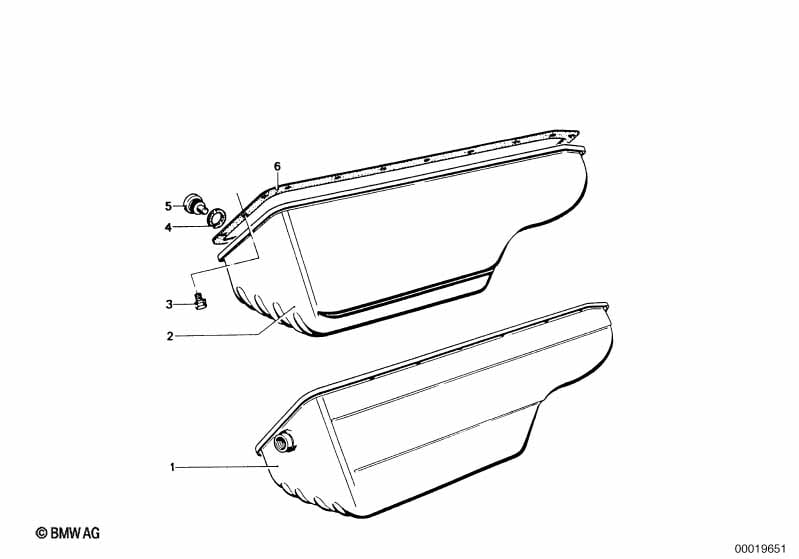

This Oil Pan technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Oil Pan | 1 | 03/1966 | 07/1977 | 11131255164 | $386.66 | ENDED | Shop at ECS Tuning | ||
| 03 | Hex bolt with washer | M6X16-U1-8.8 | 21 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| if necessary | ||||||||||
| 04 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Screw plug | AM12X1,5 | 1 | 07119909703 | Shop at ECS Tuning | |||||
| 05 | Screw plug | M22X1,5 | 1 | 11131250089 | $5.90 | Shop at ECS Tuning | ||||
| 06 | Gasket Asbestos Free | 1 | 11131727974 | $18.76 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Oil Pan?
- This technical diagram illustrates the Oil Pan within the Engine group for the 1502-2002tii 2002 produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Oil Pan (Part #11131255164).
- Which models use the hardware listed in this Oil Pan?
- The hardware and components featured in the Oil Pan are specific to the 1502-2002tii 2002 produced during 1973. These technical specifications ensure that parts like the Oil Pan (11131255164) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil Pan assembly?
- Each item in the Oil Pan corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Oil Pan by locating its position on the schematic, which then links to the official BMW part number 11131255164 for the Engine section.
