Cylinder Head for BMW 1502-2002tii 2002 (1973)

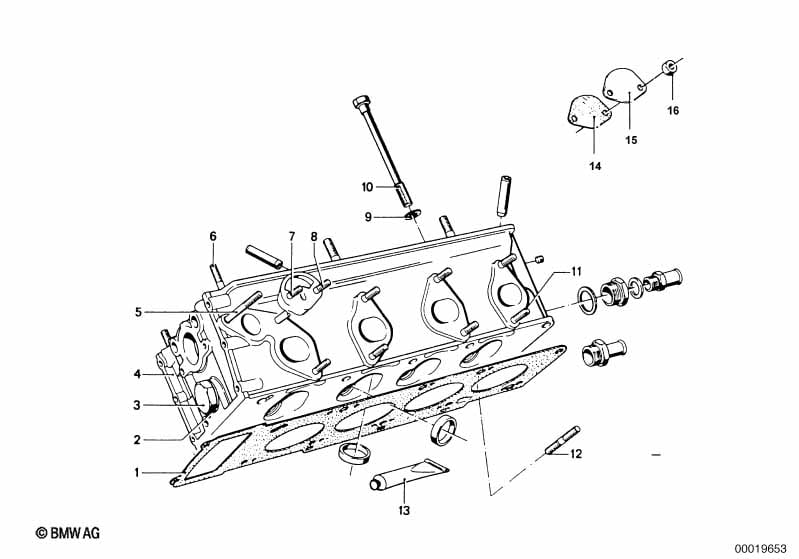

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head Gasket Asbestos-Free | 1,80MM(+0,3) | 1 | 01/1968 | 07/1976 | 11121734280 | $108.76 | ENDED | Shop at ECS Tuning | |
| 01 | Cylinder Head Gasket Asbestos-Free | 1,80MM(+0,3) | 1 | 01/1968 | 07/1976 | 11121734214 | ENDED | Shop at ECS Tuning | ||
| 01 | Cylinder Head Gasket Asbestos-Free | 1,50MM | 1 | 09/1968 | 10/1975 | 11121734279 | $109.50 | ENDED | Shop at ECS Tuning | |
| 01 | Cylinder Head Gasket Asbestos-Free | 1,50MM | 1 | 09/1968 | 10/1975 | 11121734213 | ENDED | Shop at ECS Tuning | ||
| 01 | Cylinder Head Gasket Asbestos-Free | 1,50MM | 1 | 09/1968 | 10/1975 | 11121734213 | ENDED | Shop at ECS Tuning | ||
| 02 | Gasket ring | A30X36-AL | 1 | 24111219126 | $0.71 | Shop at ECS Tuning | ||||
| 03 | Screw plug | M30X1,5 | 1 | 07119919039 | $3.11 | Shop at ECS Tuning | ||||
| 04 | Cylinder Head | 1 | 04/1971 | 12/1975 | 11129061432 | $1334.83 | ENDED | Shop at ECS Tuning | ||
| 05 | Stud bolt | M8X90 | 1 | 07129908160 | $0.76 | Shop at ECS Tuning | ||||
| 06 | Stud bolt | M6X50 | 6 | 07129902312 | Shop at ECS Tuning | |||||
| 07 | Stud bolt | M8X50-ZNS | 1 | 03/1966 | 07/1977 | 07129901917 | $0.61 | Shop at ECS Tuning | ||
| 08 | Stud bolt | M8X55 | 1 | 03/1966 | 07/1977 | 07129908137 | $0.47 | Shop at ECS Tuning | ||
| 09 | Washer | 10 | 11120621145 | $0.65 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M12X156 | 10 | 11120621144 | $4.57 | Shop at ECS Tuning | ||||
| 11 | Stud bolt | M8X28-ZN | 8 | 07119908368 | $0.54 | Shop at ECS Tuning | ||||
| 12 | Stud bolt | M8X28 | 8 | 03/1966 | 07/1977 | 07119908317 | $0.40 | Shop at ECS Tuning | ||
| 13 | Sealing compound | X | 11121262571 | ENDED | Shop at ECS Tuning |
