Wheel casing for BMW 1500-2000CS 2000C (1968)

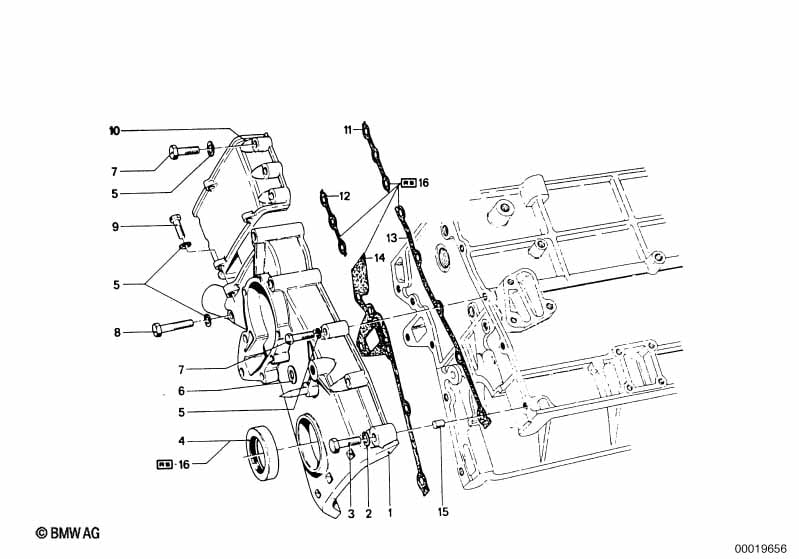

This Wheel casing technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000C. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Hex bolt | M8X35 | 3 | 02/1962 | 07/1977 | 07119913676 | $0.36 | Shop at ECS Tuning | ||
| 04 | Shaft seal | 35X55X12 | 1 | 02/1962 | 07/1977 | 11141709629 | Shop at ECS Tuning | |||
| 05 | Spring washer Black | B6-ZN | 12 | 02/1962 | 07/1977 | 07119932073 | $0.38 | Shop at ECS Tuning | ||
| 07 | Hex bolt | M6X35-8.8-ZNS3 | 9 | 02/1962 | 07/1977 | 07119902998 | $0.38 | Shop at ECS Tuning | ||
| 08 | Hex bolt | M6X40 | 1 | 02/1962 | 07/1977 | 07119912310 | $0.43 | Shop at ECS Tuning | ||
| 09 | Hex bolt | M6X25 | 2 | 02/1962 | 07/1977 | 07119913483 | $0.36 | Shop at ECS Tuning | ||
| 10 | Cover | RÄDERKASTEN OBE | 1 | 02/1962 | 07/1977 | 11140604100 | $49.11 | Shop at ECS Tuning | ||
| 11 | Gasket Asbestos Free | 1 | 11141727979 | $1.37 | Shop at ECS Tuning | |||||
| 12 | Gasket Asbestos Free | 1 | 11141727978 | $1.37 | Shop at ECS Tuning | |||||
| 13 | Gasket left asbesto-free | 1 | 11141727981 | $2.03 | Shop at ECS Tuning | |||||
| 14 | Gasket Asbestos Free | 1 | 11141727980 | $2.72 | ENDED | Shop at ECS Tuning | ||||
| 15 | Dowel | D=10,5MM | 4 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 16 | Asbestos-free gasket set cover | 1 | 11141727986 | $18.65 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
