Engine housing mounting parts for BMW 1502-2002tii 2002tii (1973)

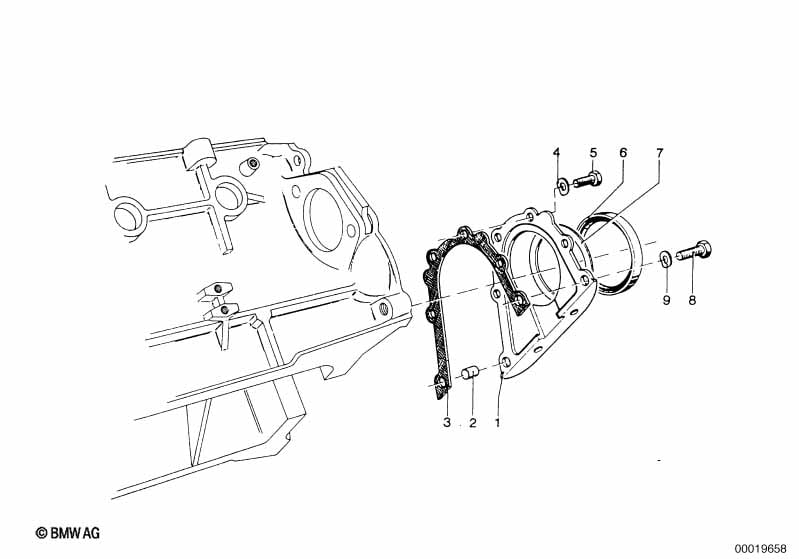

This Engine housing mounting parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 8 Loch Kurbelwelle | ||||||||||
| 01 | Cover | 1 | 09/1963 | 07/1977 | 11121252130 | $31.97 | Shop at ECS Tuning | |||
| 02 | Dowel | D=10,5MM | 2 | 09/1963 | 07/1977 | 11121726238 | $1.62 | Shop at ECS Tuning | ||
| 03 | Gasket Asbestos Free | 1 | 09/1963 | 07/1977 | 11141727975 | $2.65 | Shop at ECS Tuning | |||
| 04 | Wave washer | B6 | 4 | 09/1963 | 07/1977 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |
| 05 | Hex bolt | M6X25 | 4 | 09/1963 | 07/1977 | 07119913483 | $0.36 | Shop at ECS Tuning | ||
| 06 | Shaft seal | 90X110X12 | 1 | 09/1963 | 07/1977 | 11142249533 | $58.96 | Shop at ECS Tuning | ||
| 07 | Shim | 100X110X1,5 | 1 | 09/1963 | 07/1977 | 11141252897 | $11.84 | ENDED | Shop at ECS Tuning | |
| 08 | Hex bolt | M8X25-8.8-ZNNIV | 2 | 09/1963 | 07/1977 | 07119906181 | $0.55 | Shop at ECS Tuning | ||
| 09 | Wave washer | 8,4X15-ZNS3 | 2 | 09/1963 | 07/1977 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
