Crankshaft/flywheel for BMW 1502-2002tii 2000 (1972)

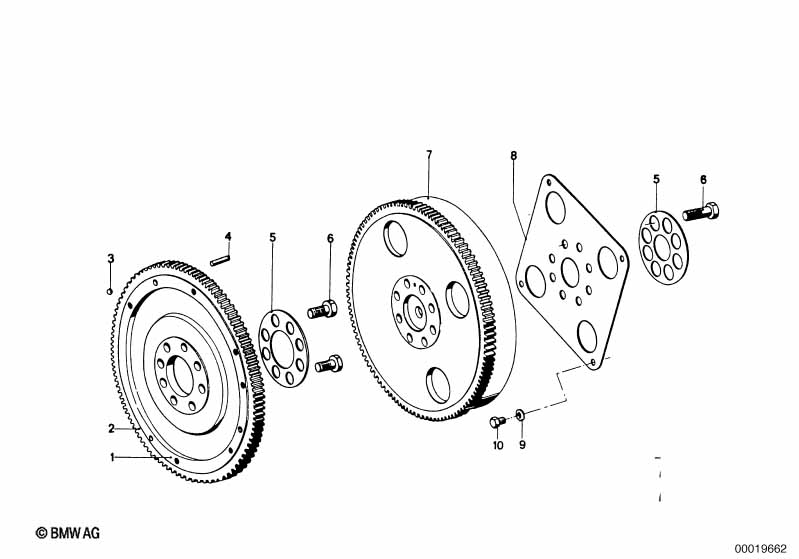

This Crankshaft/flywheel technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Gear rim | 262MM | 1 | 11220616145 | ENDED | Shop at ECS Tuning | ||||
| 03 | Ball | 4MM III | 1 | 07119986240 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Dowel pin | 3 | 11221744338 | $7.48 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M12X1,5X22 | X | 11220616143 | $3.77 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M12X1,5X28 | X | 11227805885 | $2.30 | Shop at ECS Tuning | ||||
| 8 Loch Kurbelwelle | ||||||||||
| 07 | Driving plate | 1 | 02/1965 | 07/1976 | 11221250069 | ENDED | Shop at ECS Tuning | |||
| 08 | Driving plate | 1 | 02/1965 | 07/1976 | 11221250069 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex bolt | M8X10 | 4 | 02/1965 | 07/1976 | 07119913610 | $0.32 | ENDED | Shop at ECS Tuning | |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2000 Crankshaft/flywheel?
- This technical diagram illustrates the Crankshaft/flywheel within the Engine group for the 1502-2002tii 2000 produced during 1972. It provides a detailed exploded view of the components, identifying key parts such as the Gear rim (Part #11220616145).
- Which models use the hardware listed in this Crankshaft/flywheel?
- The hardware and components featured in the Crankshaft/flywheel are specific to the 1502-2002tii 2000 produced during 1972. These technical specifications ensure that parts like the Gear rim (11220616145) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankshaft/flywheel assembly?
- Each item in the Crankshaft/flywheel corresponds to the numbered list below the illustration. For the 1502-2002tii 2000, you can identify the Gear rim by locating its position on the schematic, which then links to the official BMW part number 11220616145 for the Engine section.
