Piston ring for BMW 1500-2000CS 2000tii (1971)

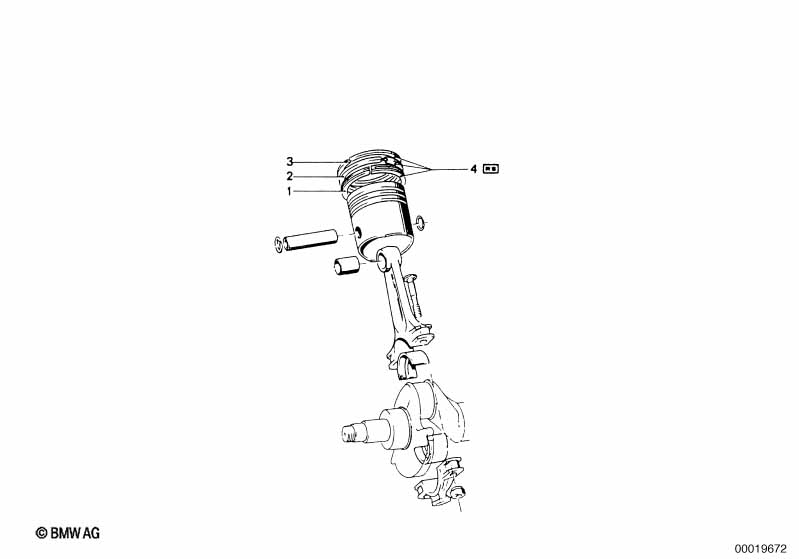

This Piston ring technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| H = 4,0mm | ||||||||||
| 01 | Oil ring | 88,97MM("0") | 44 | 09/1965 | 07/1976 | 11251274784 | ENDED | Shop at ECS Tuning | ||
| 01 | Oil ring | +0,25 | 4 | 09/1965 | 07/1976 | 11251274787 | ENDED | Shop at ECS Tuning | ||
| 01 | Oil ring | +0,50 | 4 | 09/1965 | 07/1976 | 11251274788 | ENDED | Shop at ECS Tuning | ||
| H = 2,0mm | ||||||||||
| 02 | Compress.ring | 88,97MM("0") | 4 | 09/1965 | 07/1976 | 11251259311 | ENDED | Shop at ECS Tuning | ||
| 02 | Compress.ring | +0,25 | 4 | 09/1965 | 07/1976 | 11251259312 | ENDED | Shop at ECS Tuning | ||
| 02 | Compress.ring | +0,50 | 4 | 09/1965 | 07/1976 | 11251259313 | ENDED | Shop at ECS Tuning | ||
| H = 1,75mm | ||||||||||
| 03 | Rectangring | 88,97MM("0") | 4 | 09/1965 | 07/1976 | 11251251766 | ENDED | Shop at ECS Tuning | ||
| 03 | Rectangring | +0,25 | 4 | 09/1965 | 07/1976 | 11251251767 | ENDED | Shop at ECS Tuning | ||
| 03 | Rectangring | +0,50 | 4 | 09/1965 | 07/1976 | 11251251768 | ENDED | Shop at ECS Tuning | ||
| 04 | Repair kit piston rings | 88,97MM("0") | X | 09/1965 | 07/1976 | 11251261130 | $73.75 | ENDED | Shop at ECS Tuning | |
| 04 | Repair kit piston rings | 89,22MM(+0,25) | X | 09/1965 | 07/1976 | 11251261131 | $67.98 | Shop at ECS Tuning | ||
| 04 | Repair kit piston rings | 89,47MM(+0,50) | X | 09/1965 | 07/1976 | 11251261132 | $67.98 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
